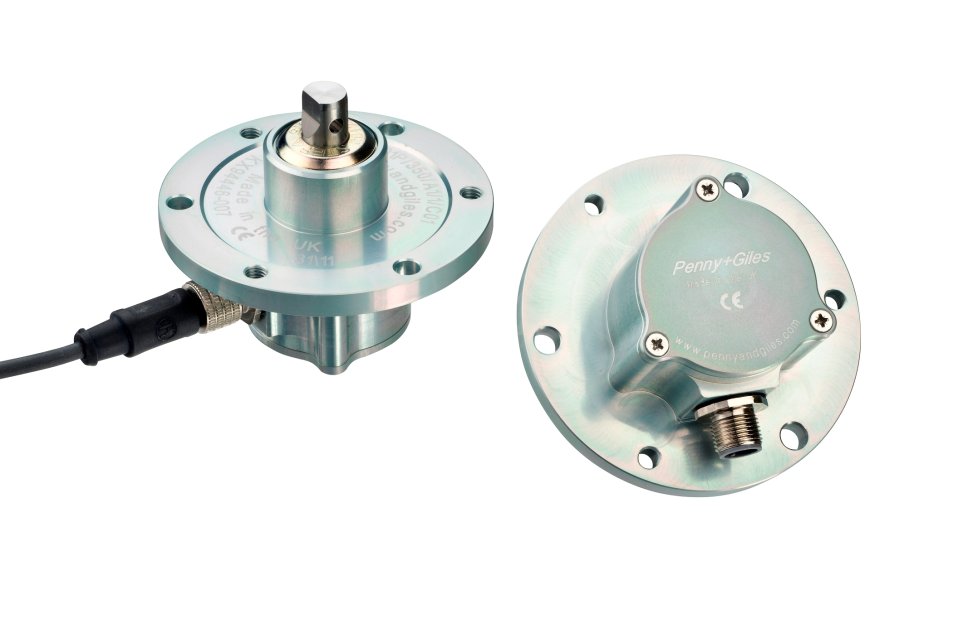

SRH501P/SRH 502P Contactless rotation sensor. Single /Redundant output

About the product

The SRH500P is a rotary position sensor with redundant output suitable for demanding industrial operating conditions including marine, offshore, military and commercial vehicles, as well as a variety of applications in steel mills, marine equipment and energy. The model has an option for IP69K. Analog voltage, 4-20mA and PWM output

SRH501/2P Contactless Rotary Sensor - Dual Output

The SRH501P (single output) and SRH502P (dual output) contactless rotary sensor has been specially developed to meet the harsh operating requirements in heavy duty industrial position sensing applications, including construction, agricultural, military and utility vehicles, as well as a variety of uses in steelworks, marine equipment and power generating plants. This model has an option for environmental protection to IP69K.

The SRH500P dual-output, contactless, rotary sensor has been specially developed to meet the harsh operating requirements in heavy-duty, industrial position-sensing applications, including construction, agricultural, military and utility vehicles, as well as a variety of uses in steelworks, marine equipment and power-generating plants. This model has an option for environmental protection to IP69K.

• Contactless - Hall-effect technology
• Single or dual-redundant outputs
• Analogue or Digital (PWM) output
• Measurement range 20° to 360°
• 12-bit resolution
• CW or ACW output
• Less than 1mVrms output noise
• Rugged housing design, in marine-grade aluminium
• Superior shaft strength
• Sealing option to IP69K
• M12 connector option for easy installation
• World-leading availability


  The SRH500P rotary sensor operates from either a 5Vdc regulated or 9-30Vdc unregulated supply and can be factory programmed to have a measurement range from 20° up to 360° in 1° increments. The sensor can be supplied with single output (SRH501P) or dual output (SRH502P). Both outputs are individually configurable at the factory for analogue or digital output and clockwise or anti-clockwise output.

  The SRH500P incorporates a 12-bit, non-contact, Hall-effect sensor with microprocessor control - offering 0.025% resolution over the selected measuring range.
