Rotation position sensor SRS880
About the product
The SRH880 is a potentiometric rotation sensor specifically designed to meet the tough operating requirements of heavy duty industrial position applications, including maritime, offshore, military and commercial vehicles, as well as a variety of applications in steel mills and power generation. This model can operate at a submerged depth of 2m.

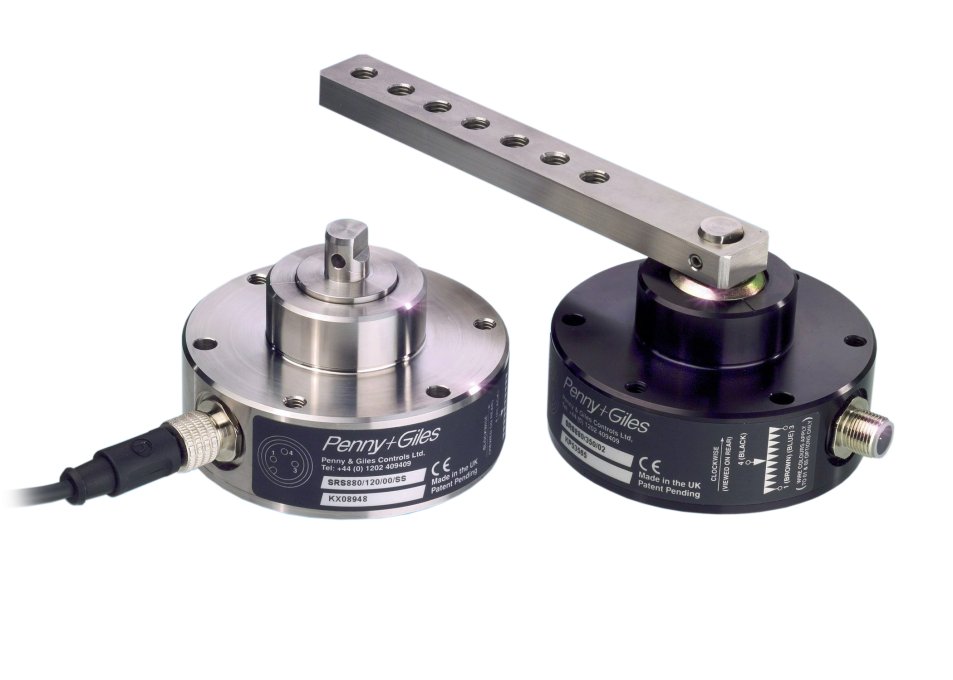

SRS880 submersible rotation sensor
The SRS880 submersible rotary sensor is specially designed to meet the tough operating requirements of today's heavy-duty industrial position sensing applications, including construction, agricultural, military and commercial vehicles, as well as a variety of steel mill and power plant applications.
This model can operate at a submerged depth of 2 m. The SRS880 uses the proven Penny & Giles long-life hybrid potentiometer technology (conductive plastic on wire), which provides high stability under extreme temperatures and humidity, with virtually infinite resolution and a lifespan of over 20 million operations.
Key features
• Robust 88 mm housing design, now available in aluminum or stainless steel
• Superior shaft strength with dual bearing support
• Sealed to IP68M - tested to 2m depth
• Electrical angles from 10 to 350° in 10° increments
•M12 connector for easy installation
• Custom wired connector with 2 m or 5 m cable length
Typical applications
-
Crane & lifting
-
Off Highway Automotive
-
Hydraulics & Mechatronics
-
Energy
-
Process
Certificates and standards
-
CE
-
Atex
Manufacturer
About the product
The SRH880 is a potentiometric rotation sensor specifically designed to meet the tough operating requirements of heavy duty industrial position applications, including maritime, offshore, military and commercial vehicles, as well as a variety of applications in steel mills and power generation. This model can operate at a submerged depth of 2m.
SRS880 submersible rotation sensor
The SRS880 submersible rotary sensor is specially designed to meet the tough operating requirements of today's heavy-duty industrial position sensing applications, including construction, agricultural, military and commercial vehicles, as well as a variety of steel mill and power plant applications.
This model can operate at a submerged depth of 2 m. The SRS880 uses the proven Penny & Giles long-life hybrid potentiometer technology (conductive plastic on wire), which provides high stability under extreme temperatures and humidity, with virtually infinite resolution and a lifespan of over 20 million operations.
Key features
• Robust 88 mm housing design, now available in aluminum or stainless steel
• Superior shaft strength with dual bearing support
• Sealed to IP68M - tested to 2m depth
• Electrical angles from 10 to 350° in 10° increments
•M12 connector for easy installation
• Custom wired connector with 2 m or 5 m cable length
