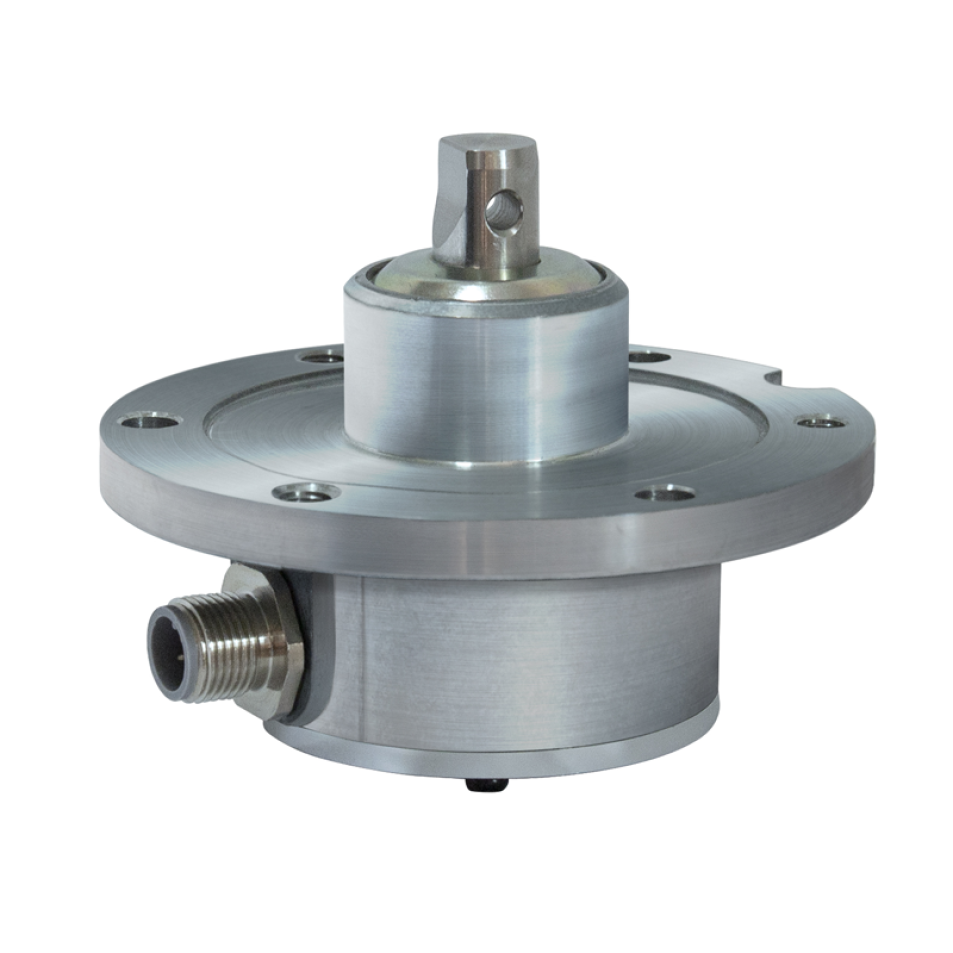

SRH76x, "Non contact" 2 outputs, galvanically isolated

About the product

The SRH76x rotary sensor is designed with Hall effect technology "non-contact" and provides long-life, high-performance measurement with two independent and electrically isolated outputs.

The SRH76x electrically isolated dual-output, contactless, rotary sensor has been specially developed to meet the harsh operating requirements of heavy-duty, industrial position-sensing applications, including construction, agricultural, military and utility vehicles, as well as a variety of uses in steelworks, marine equipment and power-generating plants. This model includes environmental protection of the electronics to IP69K and options for Voltage, Current or PWM output.

Non-contacting, Hall-effect technology

• Long-life, high performance measurement, "Fit and Forget" for optimal cost of ownership

Fully Sealed Electronics

• Shaft is isolated from electronics to ensure absolute integrity in any environment

Voltage, Current and PWM output options

• Customer selectable outputs for seamless integration with your control system

Zinc-aluminum alloy body with IP68 and IP69K sealing

• Rugged Design with engineered polymer bearings enabling 2kg side load capability, for reliable measurement in harsh environments

Single or Dual output configurations

• Industry leading dual die sensor technology offers dual redundancy to suit the needs of safety-rated systems (eg ISO11452, IEC61508)

Electrical protection to ISO7637 and ISO11452

• Providing confidence in operation and reducing the need for replacement

MTTF'd >150 years

• Safety first for "peace of mind"
