133 series "Mid Stroke" linear position sensor
About the product
The 133 series is a durable, affordable, high accuracy, short stroke linear inductive position sensor designed for use in industrial and scientific applications. ATEX, IEC EX and CSA certified units available.
The P133 is very compact and has an excellent stroke to overall length ratio. Each unit is supplied calibrated to the exact movement required by the customer, for example if your application requires a 76mm measurement we will manufacture the sensor specifically for this length. The mechanical length and calibration will be set to 76mm.
The overall performance, repeatability and stability are outstanding over a wide temperature range. The sensor has a robust stainless steel body and piston.

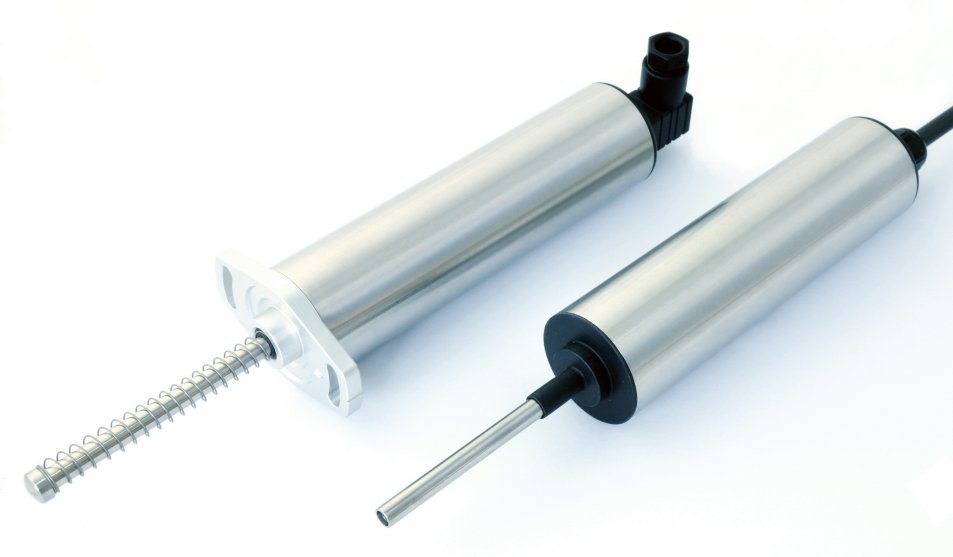

The P133 sensor is particularly easy to install with either a flange housing or body clamps. The plunger can be supplied fixed or free with either M4 internal thread or spring loaded with dome end. The P133 is available with a wide range of electrical inputs/outputs, sealing up to IP65/IP67 depending on connection/cable options and fully integrated EMC protection.
Typical applications
-
Process
-
Valve & Actuator
-
Machine & Propulsion
Certificates and standards
-
Atex
-
IECEX
-
CSA
Manufacturer
About the product
The 133 series is a durable, affordable, high accuracy, short stroke linear inductive position sensor designed for use in industrial and scientific applications. ATEX, IEC EX and CSA certified units available.
The P133 is very compact and has an excellent stroke to overall length ratio. Each unit is supplied calibrated to the exact movement required by the customer, for example if your application requires a 76mm measurement we will manufacture the sensor specifically for this length. The mechanical length and calibration will be set to 76mm.
The overall performance, repeatability and stability are outstanding over a wide temperature range. The sensor has a robust stainless steel body and piston.
The P133 sensor is particularly easy to install with either a flange housing or body clamps. The plunger can be supplied fixed or free with either M4 internal thread or spring loaded with dome end. The P133 is available with a wide range of electrical inputs/outputs, sealing up to IP65/IP67 depending on connection/cable options and fully integrated EMC protection.
