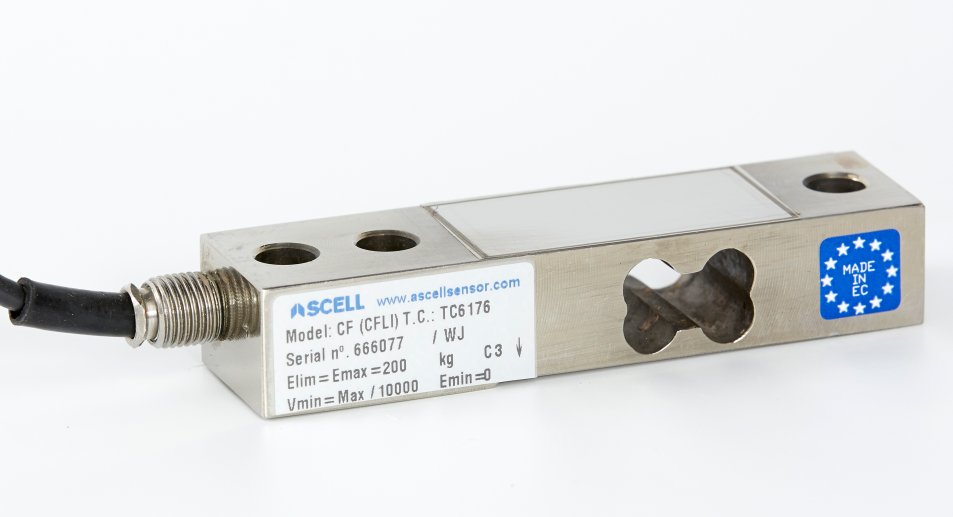

CF Series Load Cells

About the product

Stretch flap load cells for use in multi-cell platforms, pallet scales, silos, bagging machines and tank hopper scales. Variants with ATEX option

CF
Capacities:30kg, 50kg, 100kg, 150kg, 300kg, 500kg
Material: Coated steel
Sealing degree: IP67
CFI
Capacity range: 50kg, 100kg, 150kg, 300kg, 500kg
Material: Stainless steel
Sealing degree: IP67 or IP68
ATEX option
CFL
Capacity range: 200kg
Material: Stainless
Sealing degree: IP67
CFLI
Capacity range: 50kg – 100kg – 200kg
Material: Stainless steel
Sealing degree: IP67 or IP68
ATEX option
CFS
Capacity range:500kg
Material:Special steel
Sealing degree: IP67
CFSI
Capacity range: 50kg - 75kg - 100kg - 150kg - 300kg - 500kg
Material: Stainless steel
Sealing degree Sealing degree: IP67 or IP68
ATEX option
CFLIF
Capacity range: 15kg, 25kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
Material: Stainless steel
Sealing degree: IP68
CFSI
Capacity range: 15kg, 25kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 750kg, 1000kg, 1500kg
Material: Stainless steel
Sealing degree: IP68
