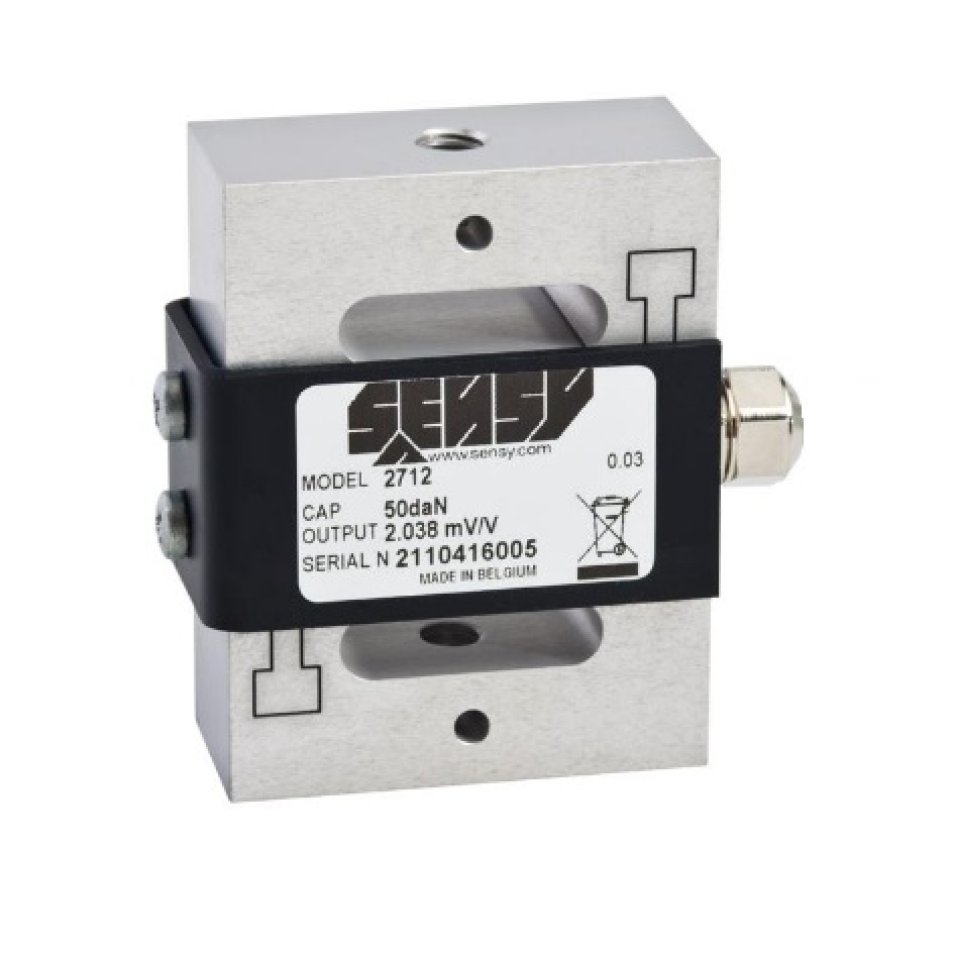

2712 Tension and compression load cell

About the product

Universal load cell that combines high accuracy, stability and easy installation. Up to 1t Option ATEX

Key information
- wide capacity range between: 10 daN (10 kg) to 1000 daN (1 t)
- Overload protection in tension and compression (not for 500 daN and 1000 daN)
- Easy to install, compact design
- Sealing degree IP54 / IP 65
- Material: Anodized aluminum
- Available options:
o high service temperature (150 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o Cable output w/connector
- Also available as standard reference cell, ISO 376 (see specific data sheet)

The 2712 is perfectly designed for the following applications
- Industrial power measurement
- Weighing of hanging reactors or hoppers, conveyor belts
- Hybrid weighbridges (mechanical conversion)

Capacities
2712 : 10 - (15) - 20 - (30) - 50 - (75) - 100 - (150) - 200 - (300) - 500 - (750) - 1000 daN
