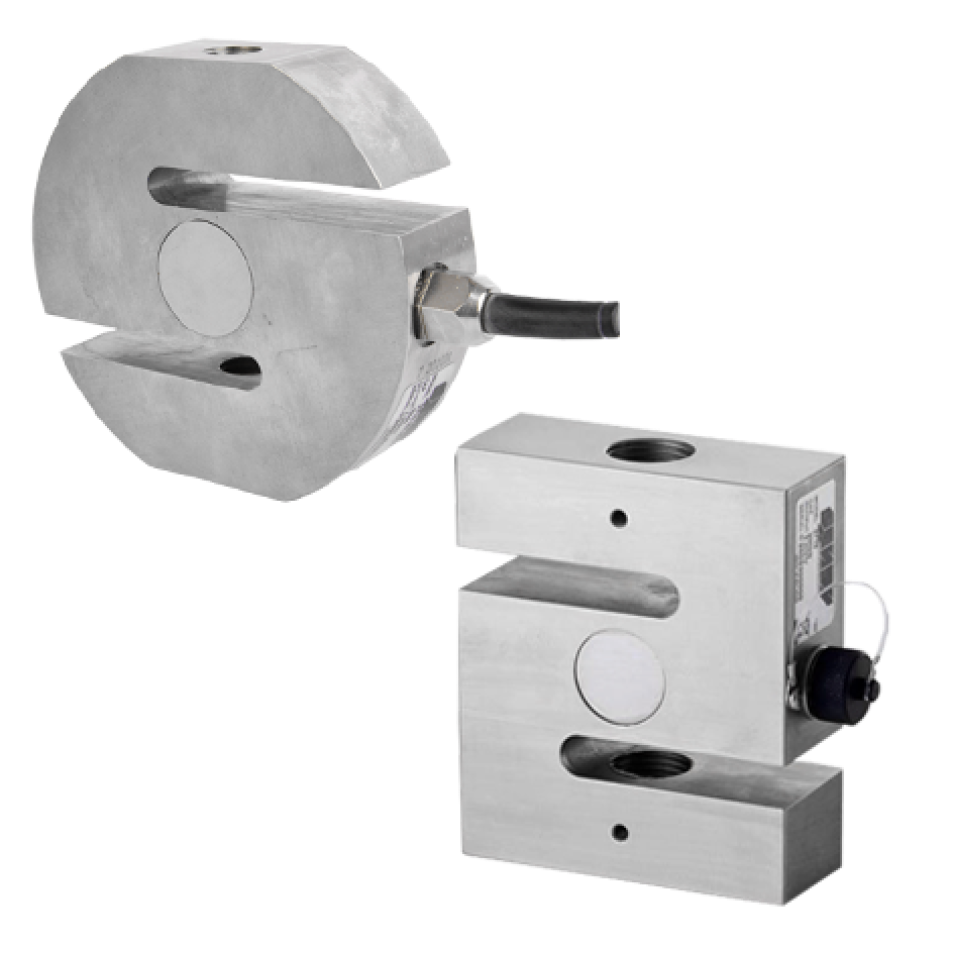

2710-2715 Tension and compression load cell
About the product
Universal load cell that combines accuracy, stability and easy installation. Up to 5t Option ATEX
Key information
- Stainless steel
- Sealing degree IP 67
- Compact design
- Available options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o Cable outlet with connector
o High service temperature (180 °C)
The 2710 is perfectly designed for the following applications
- Industrial power measurement
- Weighing of hanging loads or hoppers
- Weighing on conveyor belts
- Hybrid weighing systems (mechanical conversion).
CAPACITIES
2710 : (5) - (7.5) - 10 - (15) - 20 - (30) - 50 kN
Typical applications
-
Process
-
Construction
-
Off Highway Automotive
Certificates and standards
-
EX
-
CE
Manufacturer
About the product
Universal load cell that combines accuracy, stability and easy installation. Up to 5t Option ATEX
Key information
- Stainless steel
- Sealing degree IP 67
- Compact design
- Available options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o Cable outlet with connector
o High service temperature (180 °C)
The 2710 is perfectly designed for the following applications
- Industrial power measurement
- Weighing of hanging loads or hoppers
- Weighing on conveyor belts
- Hybrid weighing systems (mechanical conversion).
CAPACITIES
2710 : (5) - (7.5) - 10 - (15) - 20 - (30) - 50 kN
