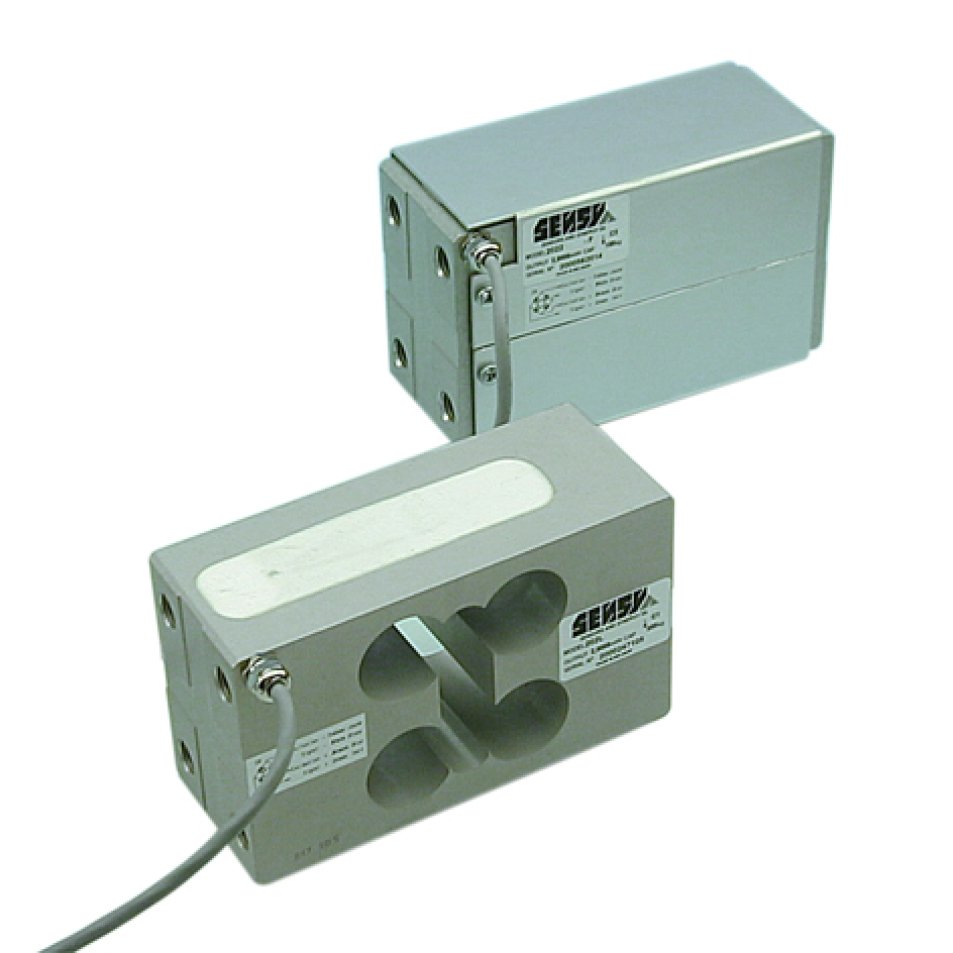

2022 Single point load cell "off center"

About the product

Single point load cell designed specifically for platforms and containers. Up to 500kg. Option ATEX

Key information

- "Off-center" design
- Max platform size: 800 x 800 cm
- Material: Anodized aluminum
- Sealing degree: IP 64
- Easy installation
- OIML/R60 up to 3000d for scales in class III according to EN 45 501
- Available options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o High service temperature (150 °C)
o Protective cover
o Enhanced protection against corrosion
2022 is perfectly designed for the following applications

- Industrial scales and platform retail scales ....
- Medium hopper weighing
- Filling, packaging and batch applications

Capacities
2022 : 100 - 150 - (200) - 300 - 500 kg
