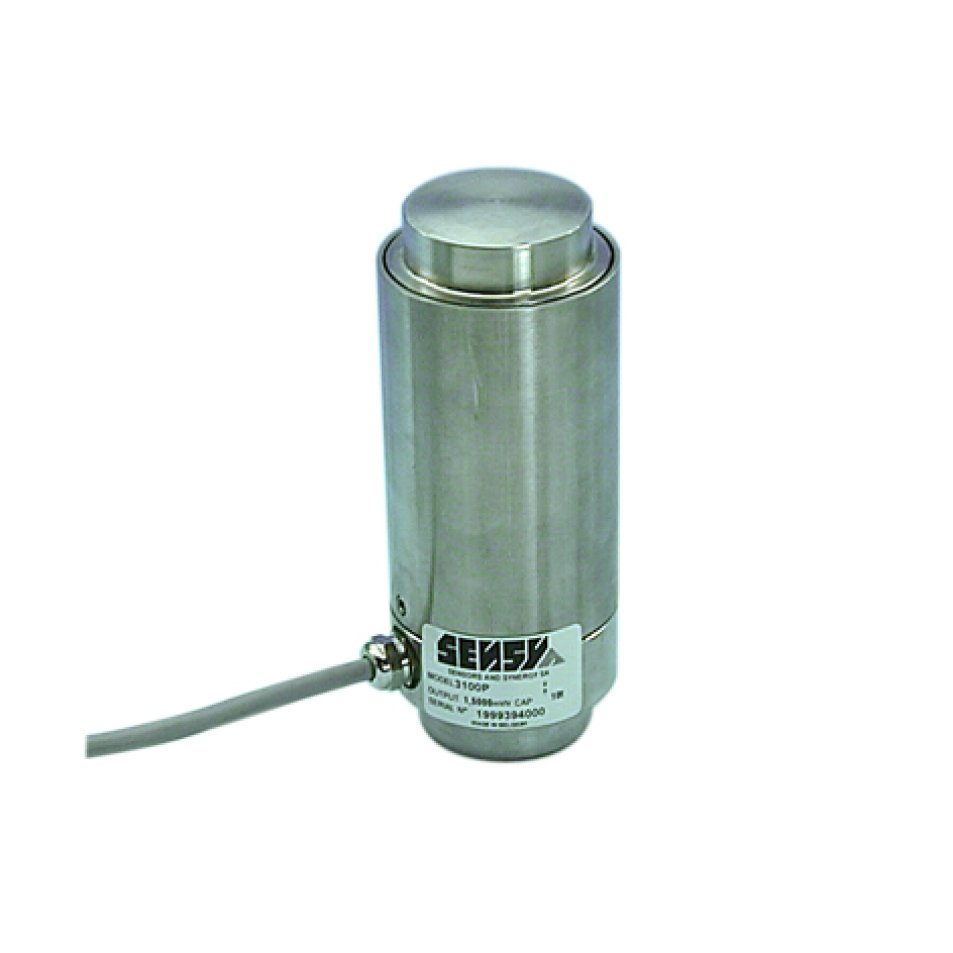

3100P Pendulum Compression Load Cell

About the product

High capacity compression cell. Up to 500t. Option ATEX

Key information

- Container, high capacity load cell (up to 500 tons)
- Stainless steel only
- Sealing degree IP 67
- Pendulum technology - Self-fixing
- Available in C1.5 (1'500 d) OIML / R 60
- Matching impedance and sensitivity (for parallel connection)
- Many mounting accessories available
- Available option:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o high service temperature (up to 180 °C)
o sealing degree IP68

The 3100P is prefectly designed for the following applications

- Weigh bridges
- Silos, tanks or hoppers weighing
- High capacity reactor weighing
- Train scales etc.

Capacities
3100P : (3) - 5 - (7.5) - 10 - (15) - 20 - 30 - 50 - (75) - 100 - (150) - 200 - 300 - 500 h
