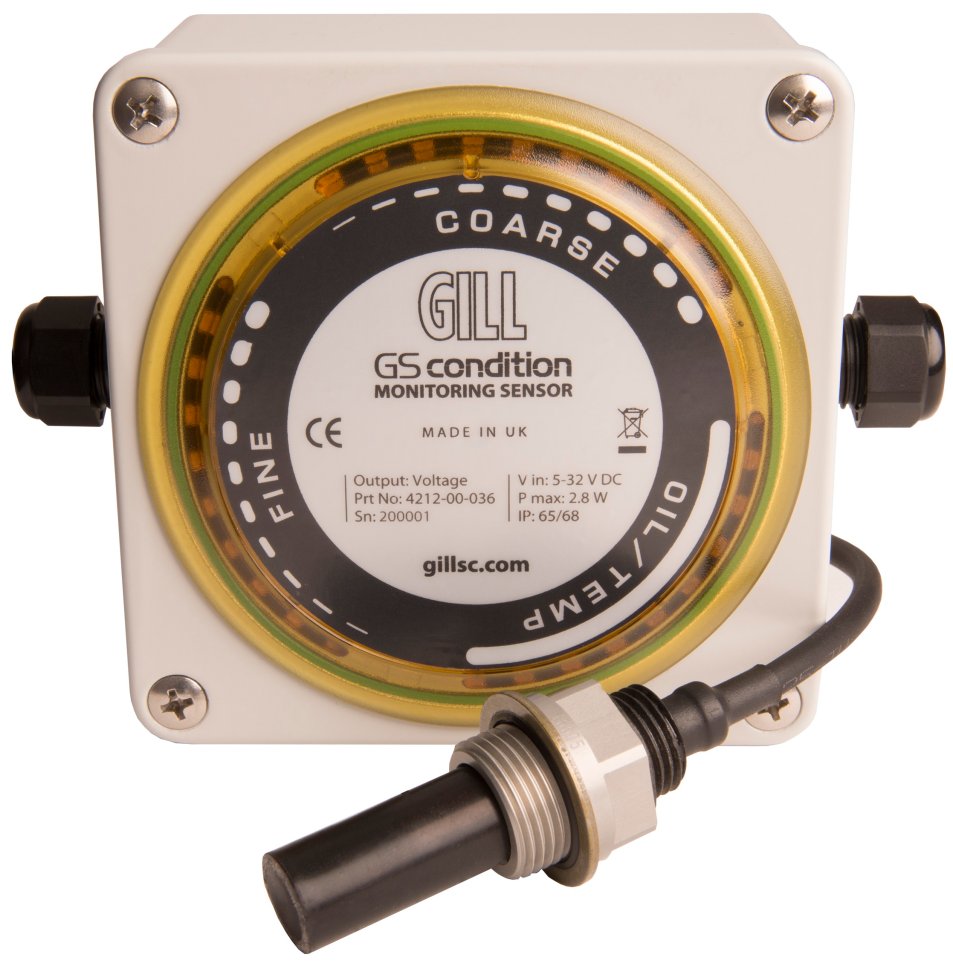

Particle in oil sensor w/display

About the product

Oil condition monitoring sensor provides continuous real-time monitoring of ferrous wear particles in oil, combined with water in oil measurement. For indication of wear in mechanical components and signals of the most common causes of machine failure

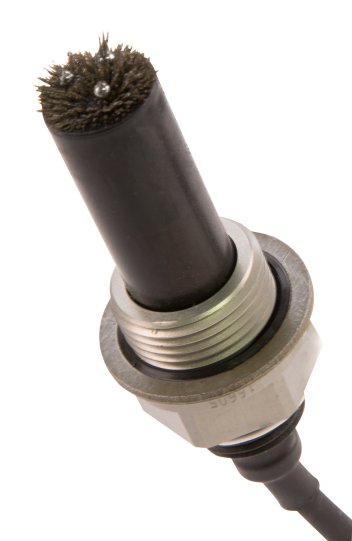

The Oil Waste Sensor is designed for equipment that uses oil as a lubricant. When fitted as a “smart” replacement for the oil drain plug, or in an oil bypass circuit, the sensor uses a powerful magnet to attract ferrous particles suspended in the oil due to wear on the internal components. The sensor can distinguish between fine and coarse waste, and can also alert or continuously monitor either oil temperature or water* presence. The sensor is supplied with a local display unit, can be installed in a wide range of fittings and is available with either a 0-10V, 4-20mA or CAN digital output.

Typical applications

• Industrial processes
• Power sector
• Transportation
• Mining

Key features
• Captures fine and coarse ferrous waste
• Continuous or alarm output for water* presence or oil temperature
• Wide operating temperature range
• Local display unit showing detected levels
• Choice of 0-10V, 4-20mA or CAN output models
• Suitable for use with oils, fuels and coolants
• Wide range of fittings available
• Calibration software available
