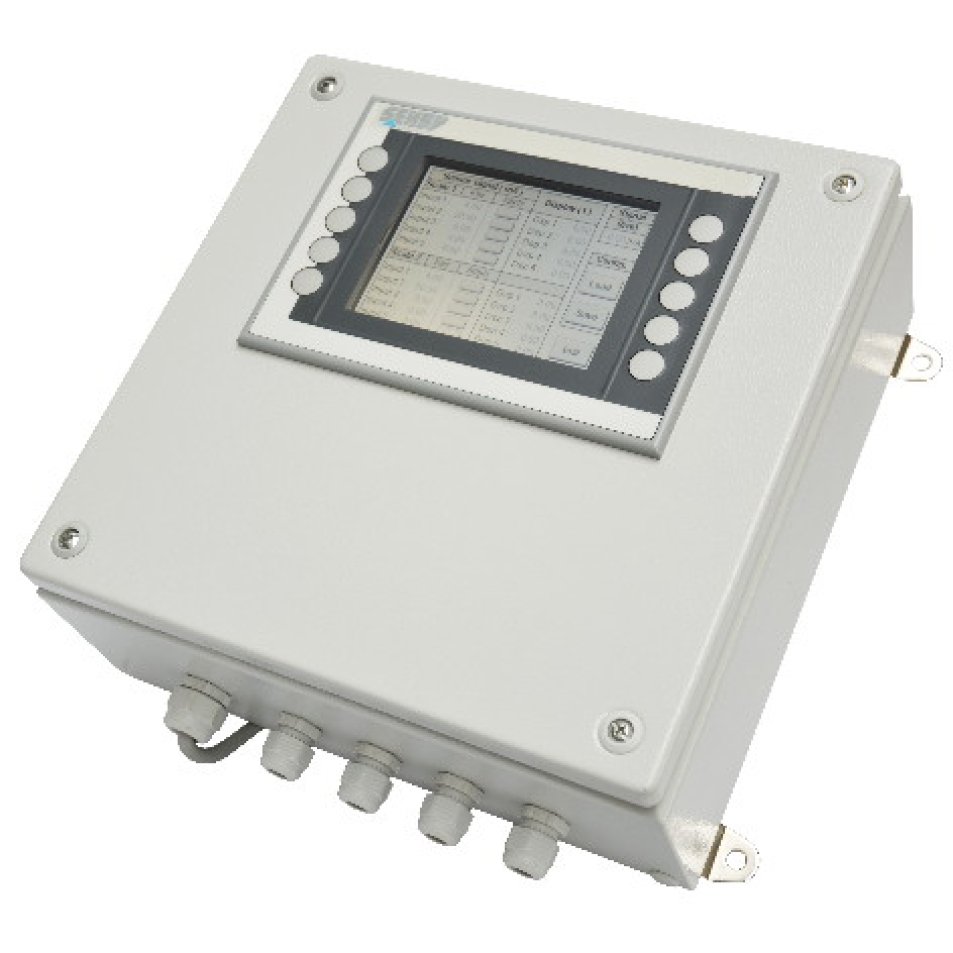

DISP-RTL Display for "Running Line" tensiometers

About the product

3 channel display specifically designed to work with Sensys running line tensiometer 5570, 5575, 5580 and 5585 for winches and running cables to visualize the tension force-

DISPLAY FOR RUNNING LINE TENSIOMETER

Inputs:
◦Force transducer
◦Speed sensor
◦Payout sensor

Digital displays and bargraphs
◦Force
◦Speed
◦Payout

Data transmission

Intuitive and easy to use and program

OPTIONS
- Data logging (Download by USB stick or Ethernet network)
- Communication output RS-232, RS-485, Profibus DP Save
- Analog output 4..20 mA
- Relays output 2 or 4 FORM-C (5 A, 230 VAC resistive load)
- Power supply: 110 et 230 VAC (50 – 60 Hz)
- Temperature range -20..+50 °C (100 VA)
- Possibility to measure more sensors

Measurement in combination with running line tensiometers

Capacities
◦Reset (tare)
◦Peak and through memories
◦Filter
◦Power calculation (optional)
◦Possibility to add other functions (option
