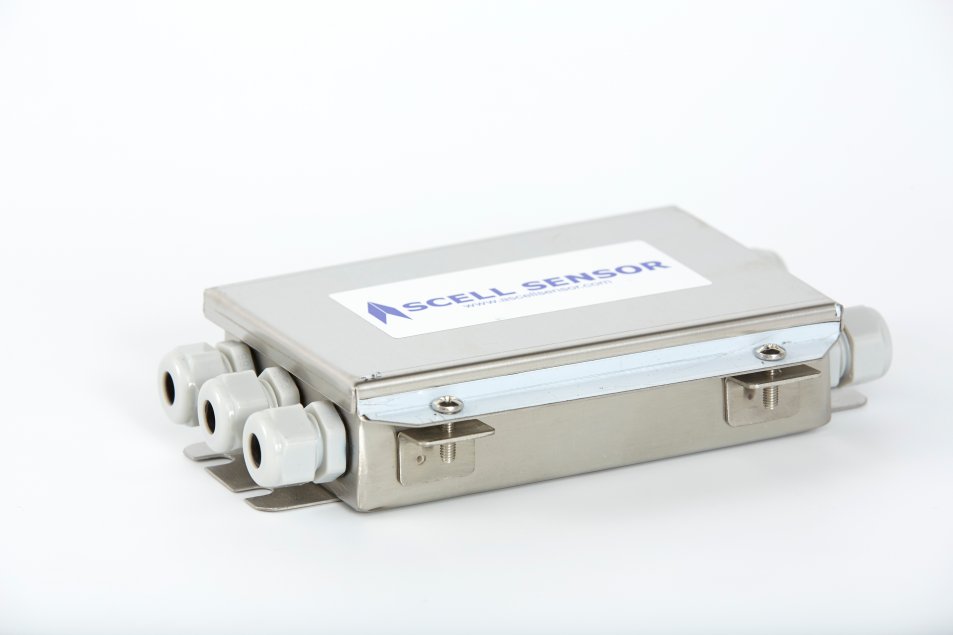

I-CJ4 junction box 4 load cells
About the product
Stainless steel housing with 4 PG9 cable entry points and 1 PG9 cable entry point for indicator. Adapter sleeves for cell cable from 3.6 mm diameter and up and rubber plugs for unused entries are included.
• Stainless steel case.
• Silicone sheet gasket.
• IP67 protection.
• Regulation with multi-turn precision potentiometers in series.
• Potentiometer range.
o For 350Ω load cells 5%
o For 700Ω load cells 3%
o For 1000 Ω load cells 2%
o Working temperature 40 ~130ºC
o Relative humidity <85%RH
Typical applications
-
Process
Manufacturer
About the product
Stainless steel housing with 4 PG9 cable entry points and 1 PG9 cable entry point for indicator. Adapter sleeves for cell cable from 3.6 mm diameter and up and rubber plugs for unused entries are included.
• Stainless steel case.
• Silicone sheet gasket.
• IP67 protection.
• Regulation with multi-turn precision potentiometers in series.
• Potentiometer range.
o For 350Ω load cells 5%
o For 700Ω load cells 3%
o For 1000 Ω load cells 2%
o Working temperature 40 ~130ºC
o Relative humidity <85%RH
