Temperature sensor TGL00921-2

About the product

Surface mounted temperature sensor - -20...+85°C

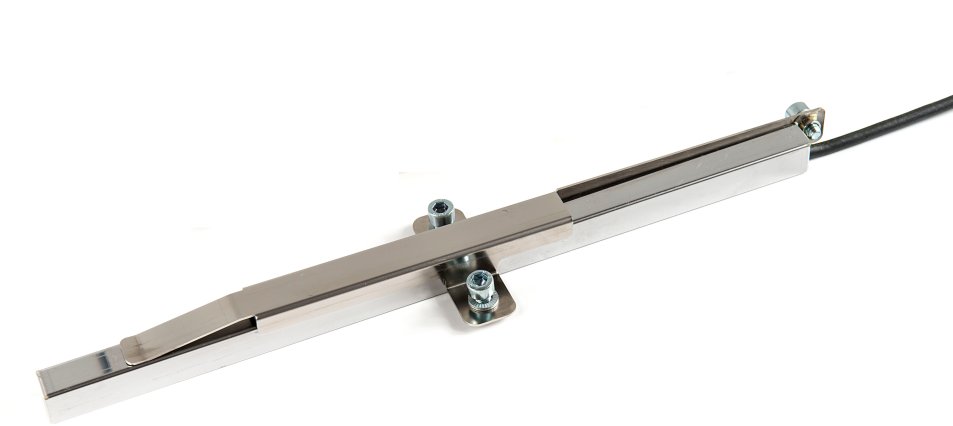

The TGL00921-2 temperature sensor is a surface-mounted PT1000 sensor with R and T output. Contact sensors in the TGL00921-2 series are screwed to the application using a holder.

Technical data:
Dimensions: 309 x 14 x 14 mm
Supply voltage: 18...32VDC (typ. 24VDC)
Output signals: R and T Temperature range: -20...+85°C
Short-circuit proof
Power consumption: max. 50mA
Protection class: IP67
Housing: stainless steel

Typical applications

Energy
Machine & Propulsion
