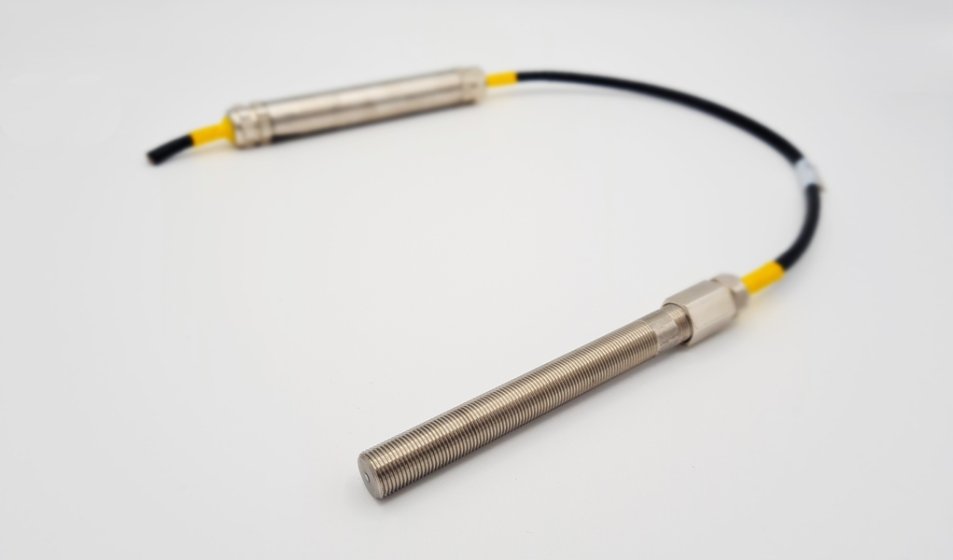

Inductive pulse sensor w/amplifier FGL 01406
About the product
Robustly designed pulse sensor for combustion engines and machines with high vibration levels.
The FGL1406 is a robust speed sensor for the detection of ferromagnetic material.
Rotary speed sensors of the FGL1406 series are particularly robustly constructed sensors and have a right-hand signal output (PNP). Approval from class societies available.
Measuring principle: inductive pulse pickup, scanning of objects such as gear wheels, perforated discs, pins or milled shafts made of ferromagnetic material.
Advantage: Due to the particularly robust design, use on combustion engines and machines with high vibration loads is possible.
Power supply: 10...32VDC.
Sampling frequency: 30Hz...20kHz
temperature range: -25...+85°C
Air gap: approx. 1.5....4mm
Typical applications
-
Energy
-
Machine & Propulsion
Manufacturer
About the product
Robustly designed pulse sensor for combustion engines and machines with high vibration levels.
The FGL1406 is a robust speed sensor for the detection of ferromagnetic material.
Rotary speed sensors of the FGL1406 series are particularly robustly constructed sensors and have a right-hand signal output (PNP). Approval from class societies available.
Measuring principle: inductive pulse pickup, scanning of objects such as gear wheels, perforated discs, pins or milled shafts made of ferromagnetic material.
Advantage: Due to the particularly robust design, use on combustion engines and machines with high vibration loads is possible.
Power supply: 10...32VDC.
Sampling frequency: 30Hz...20kHz
temperature range: -25...+85°C
Air gap: approx. 1.5....4mm
