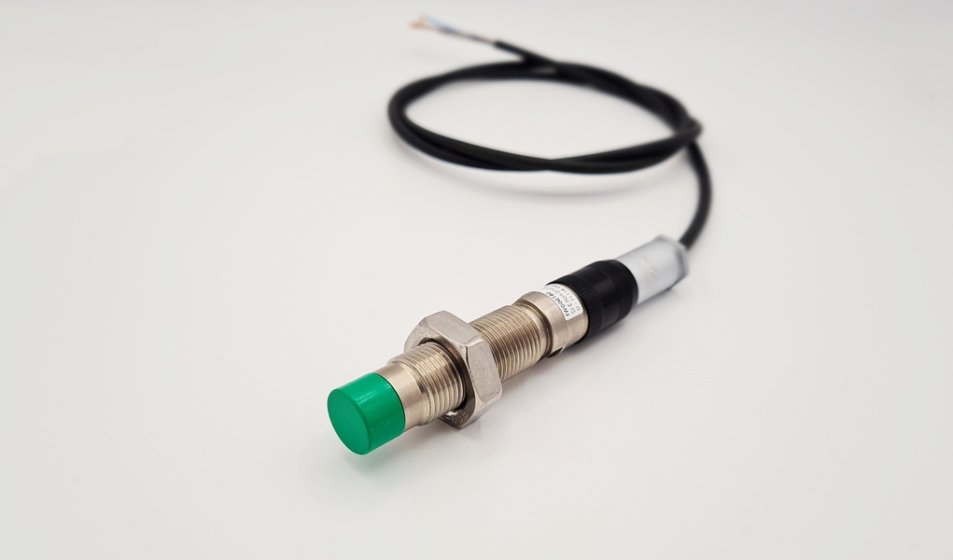

Inductive oscillating position sensor IW00016… / IW00017.
About the product
Allows measurement of distances 2 -6 mm to metal components in rough machine environments
The IW00016x is a sensor for precise determination of the distance to a metal component.
Distance sensors of the IW00016x series work according to the principle of the inductive oscillator sensor. The output signal is proportional to a measuring distance of 2..6mm. Approvals from classification societies available.
Measuring principle: The level change of the oscillator is converted into an analog 4..20mA or 0.5...4.5V signal.
Advantage: Due to the robust design, use under rough environmental conditions is possible.
Power supply: 15...30VDC
Linearity +/-4%
Temperature range: 0...+70°C
Shock/vibration according to EN500008
Manufacturer
About the product
Allows measurement of distances 2 -6 mm to metal components in rough machine environments
The IW00016x is a sensor for precise determination of the distance to a metal component.
Distance sensors of the IW00016x series work according to the principle of the inductive oscillator sensor. The output signal is proportional to a measuring distance of 2..6mm. Approvals from classification societies available.
Measuring principle: The level change of the oscillator is converted into an analog 4..20mA or 0.5...4.5V signal.
Advantage: Due to the robust design, use under rough environmental conditions is possible.
Power supply: 15...30VDC
Linearity +/-4%
Temperature range: 0...+70°C
Shock/vibration according to EN500008
