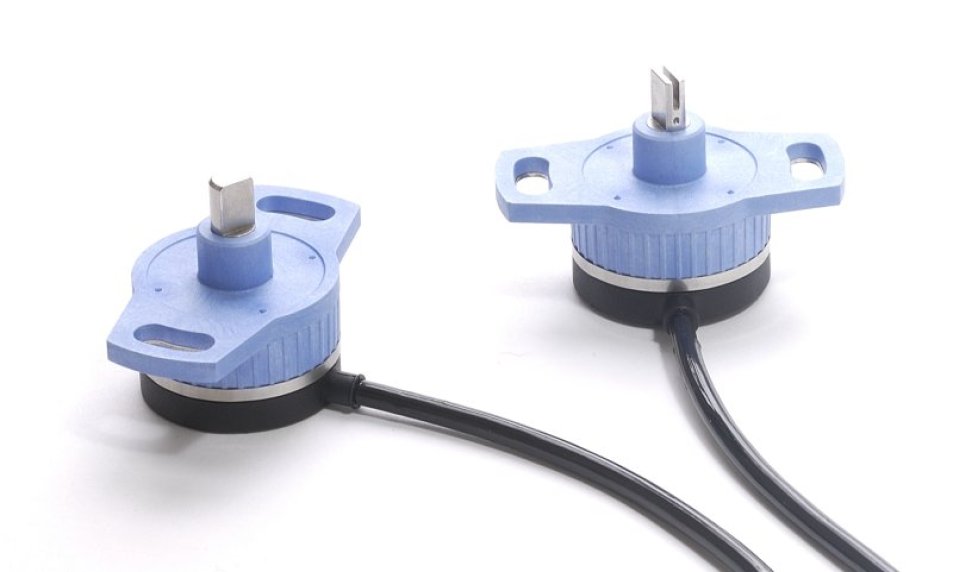

Rotation sensor, IP68 SRS280

About the product

SRS280 rotary sensor specifically designed to meet tough operating requirements and in environments with vibration, humidity and operating temperature. A number of innovative design features have been incorporated to overcome the weaknesses of existing products in the market. Both as a feedback sensor and a command generator.

The SRS280 sealed rotary sensor has been specially developed to meet the harsh operating requirements, with a number of innovative design features incorporated to overcome the shortcomings of existing products from other manufacturers.

The SRS280 uses the proven long life Penny+Giles hybrid potentiometer track technology (conductive plastic on wire), providing high stability under extremes of temperature and humidity, with virtually infinite resolution and a life in excess of 20 million operations.

Key features
• Angles from 10 to 350° in 10° increments
• Crush-proof mounting flange with steel inserts
• Choice of two shaft attachments
• Duplex shaft bearing support system
• Integrally molded sheathed cable assembly
• Cable length 0.5m or 2m
• Sealed to IP50 or IP68

Rapid availability - we can supply any one of 35 different angles, two shaft styles, two sealing options and two cable options - 280 different sensor configurations - all available faster than our competitors.
