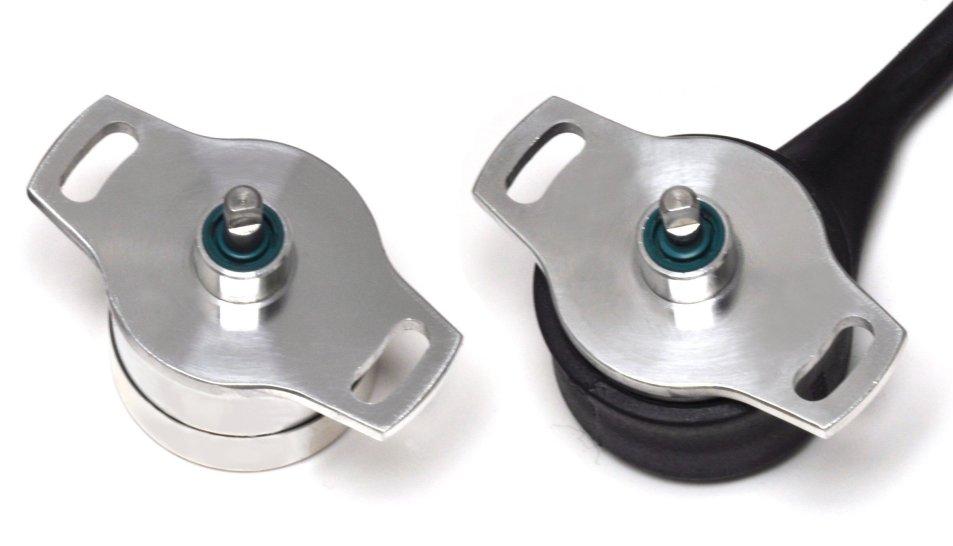

Miniature rotation (30°-140°) position sensor P 501

About the product

The P501 is a miniature, affordable, durable, high-accuracy rotary sensor designed for industrial and scientific applications.

Provides a linear output proportional to the angle of deflection
Each unit is supplied with the output calibrated to the angle required by the customer, between 30 and 140 degrees
It is particularly suitable for OEMs seeking good sensor performance for arduous applications where space is important
Overall performance, repeatability and stability are outstanding over a wide temperature range
Rugged nickel plated aluminum body and integrated mounting flange
The flange has two 4.5mm by 20 degree wide slots on a 38mm pitch to simplify mounting and position adjustment
Sealing is to IP67 (boot version) and full EMC protection is built in
