Flat rotation (15°-160°) position sensor P503
About the product
The P503 RIPS® (Rotary Inductive Position Sensor) is an affordable device designed specifically for OEM users.
Provides a linear output proportional to the angle of rotation
Each unit is supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees
Overall performance, repeatability and stability are outstanding over a wide temperature range

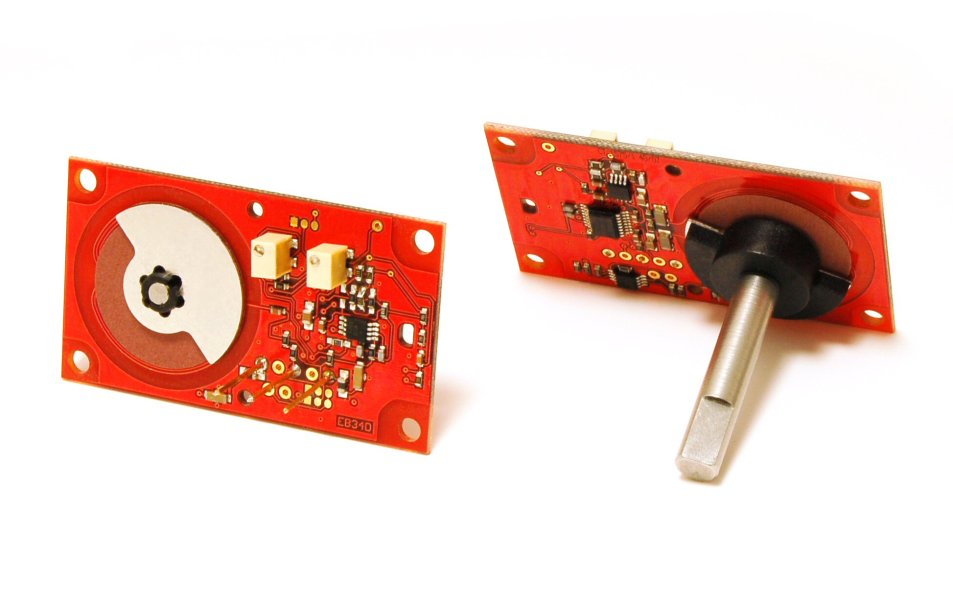

Very compact sensor, supplied as a printed circuit board sub-assembly, has a range of electrical options
The P503 is ready to mount directly in customer's equipment
Connections to the sensor are made via solder pins
Typical applications
-
Process
-
Construction
Manufacturer
About the product
The P503 RIPS® (Rotary Inductive Position Sensor) is an affordable device designed specifically for OEM users.
Provides a linear output proportional to the angle of rotation
Each unit is supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees
Overall performance, repeatability and stability are outstanding over a wide temperature range
Very compact sensor, supplied as a printed circuit board sub-assembly, has a range of electrical options
The P503 is ready to mount directly in customer's equipment
Connections to the sensor are made via solder pins
