4223 LevelLite Level sensor

About the product

LevelLite lightweight, precise liquid level sensors for air and rail applications LevelLite is a specialist sensor for applications where equipment weight is a priority.

Built from quality aluminum with sealed electronics, LevelLite offers continuous level measurement in harsh environments such as unmanned aerial vehicles (UAVs) where the combination of high performance and low weight provides maximum flight time.

LevelLite can be used to measure fuels, oils and coolants and, in addition to level measurement, also provides either a switching or temperature output.

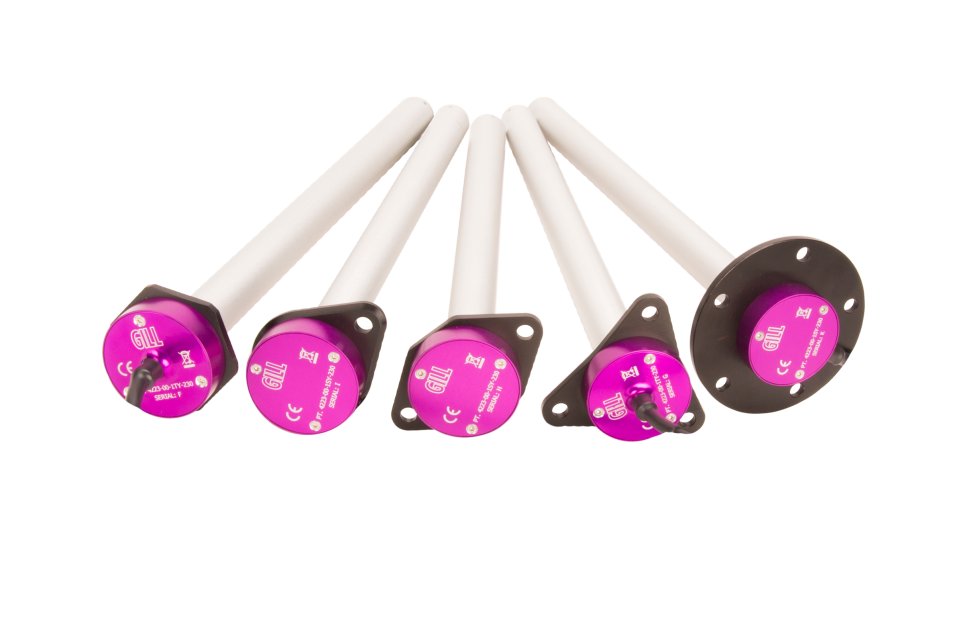

LevelLite liquid level sensors are lightweight, solid-state capacitive level sensors available in many length and mounting arrangement configurations.

TYPICAL APPLICATIONS
- Unmanned aerial vehicles (UAV)
- Motorsport including F1 and World Rally
- Lightweight aero applications

KEY FEATURES
- Lightweight 6082 grade aluminum construction
- Accuracy 1% FSD at 20°C
- Wide operating temperature range: -40°C to +125°C
- Primary level output 0.25-4.75V (max range 0.25-10V)
- Temperature or switched secondary output options
- Measures fuel, oils and coolants
- Any length available between 100mm and 750mm
