4174 Industrial level sensor

About the product

Solid state capacitive measurement technology gives this sensor the robustness and reliability required to perform continuous measurement in demanding industrial environments, in a wide range of different liquid types. 100-2000mm length

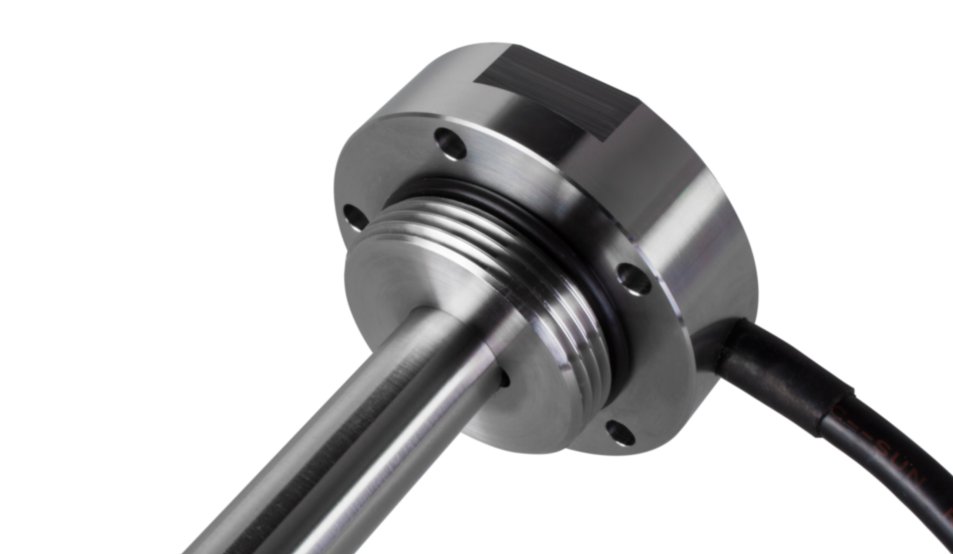

4174 INDUSTRIAL LEVEL SENSOR

By eliminating moving parts, floats or mechanical linkages the Industrial Liquid Level Sensor removes some of the most common causes of sensor unreliability and inaccurate measurement. The solid-state capacitive measurement technology used by Gill provides the sensor with the robustness and dependability required to continuously perform in demanding industrial environments, in a wide variety of liquid types.

Engineered in 316 stainless steel, the flange has either an SAE 5-bolt, 1⅛” UNF or 1.25" BSP threaded mount incorporated. The 0-10V configurable analogue output is coupled with a ±2% accuracy and -40°C to +125°C temperature range. With sensor lengths of up to 2 meters, this makes a sensor package to meet the needs of Engineers in a high performance, cost effective package with a low cost of ownership.

• Capacitive, solid-state technology
• Compatible with a wide range of liquid types
• 316 Stainless steel construction
• SAE 5-bolt, 1⅛” UNF and 1.25" BSP mount options
• Lengths up to 2000 mm
• Configurable analogue output of 0-10V
