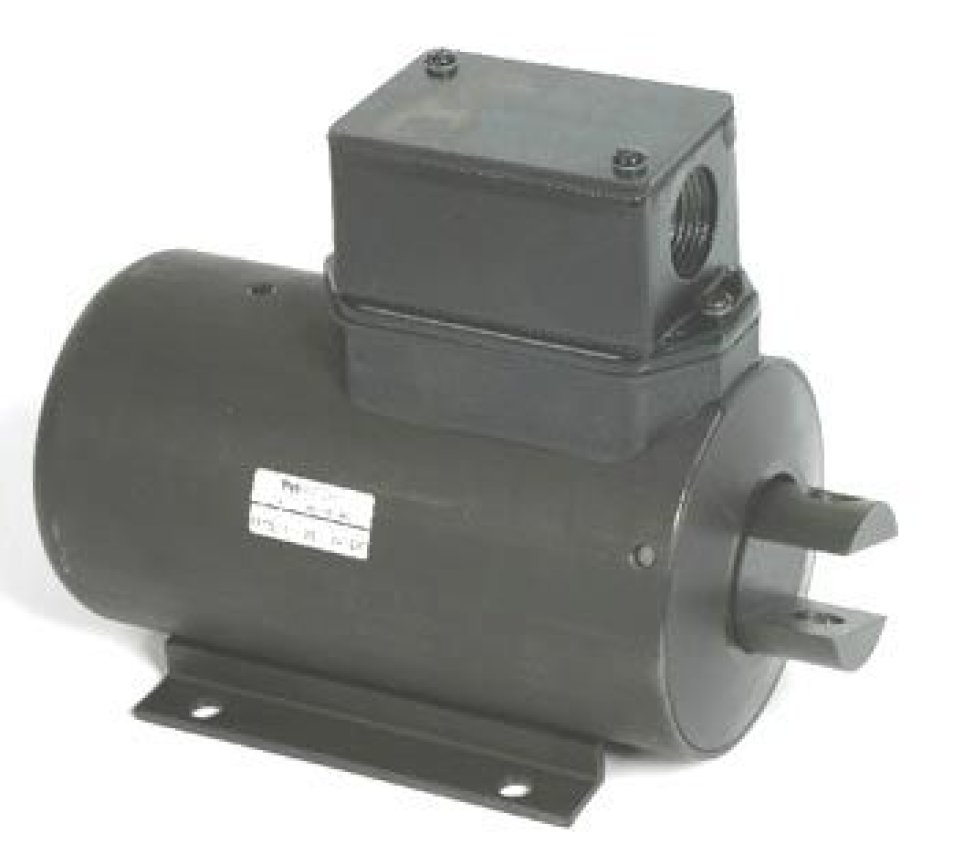

MT40162 Tubular Solenoid (Model M90)
About the product
Model MT40162 tubular solenoid has a 40mm stroke and can provide 60N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Optional flying leads
- Optional voltage ratings
- Ø90mm x 167mm
- 100% power 68 Watts dc
- 60N force at 40mm stroke
About the product
Model MT40162 tubular solenoid has a 40mm stroke and can provide 60N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Optional flying leads
- Optional voltage ratings
- Ø90mm x 167mm
- 100% power 68 Watts dc
- 60N force at 40mm stroke
