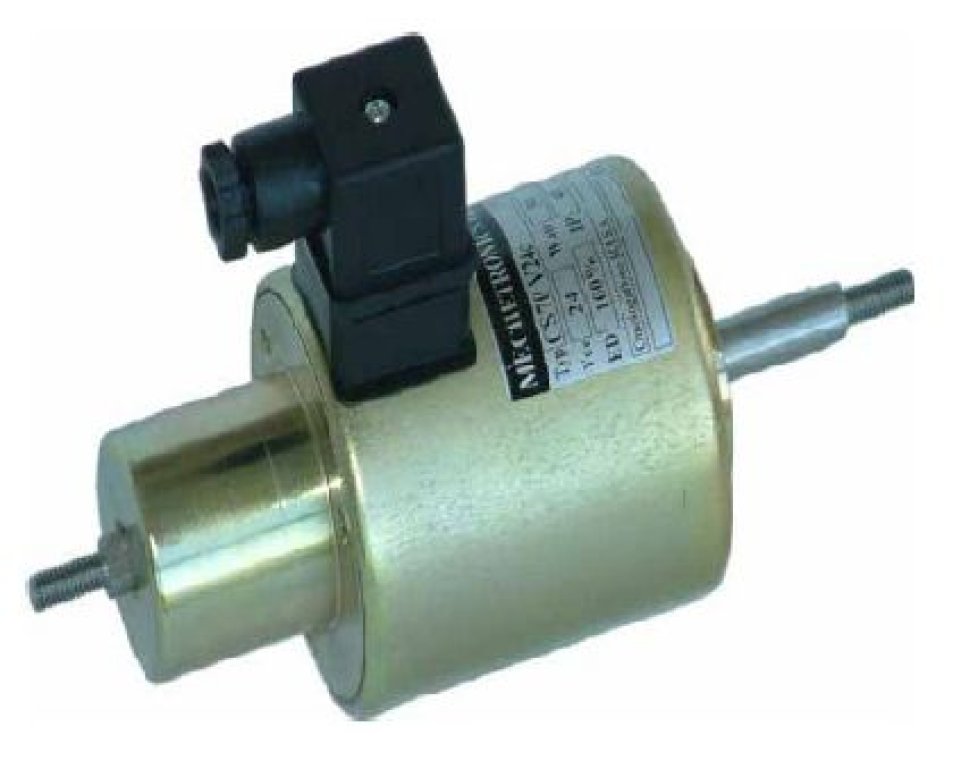

GT2876 Tubular Solenoid (Model CS70)
About the product
Model GT2876 tubular solenoid has a 25mm stroke and can provide 28N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Feet and bellows available
- Bearing mounted
- Ø70mm x 76mm
- 100% power 50 Watts dc
- 28N force at 25mm stroke
About the product
Model GT2876 tubular solenoid has a 25mm stroke and can provide 28N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Feet and bellows available
- Bearing mounted
- Ø70mm x 76mm
- 100% power 50 Watts dc
- 28N force at 25mm stroke
