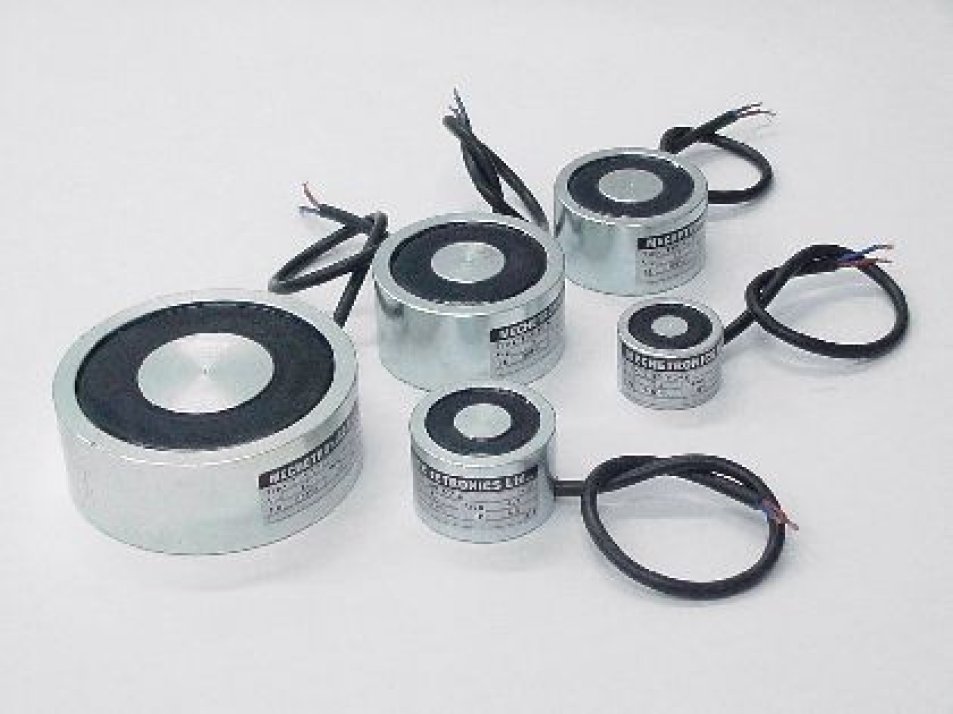

GM3522 two GM9535 Holding magnets
About the product
A range of five models in different sizes and holding forces.
100% ED (continuously rated).
IP65 protected with a zinc plated housing and a tapped hole for simple mounting.
Normally 12 or 24Vdc operation, but other voltages are available, including AC operation.
- GM3522 - 150N holding force from Ø35mm x 22mm deep
- GM4530 - 290N holding force from Ø45mm x 30mm deep
- GM5530 - 660N holding force from Ø55mm x 30mm deep
- GM6533 - 800N holding force from Ø65mm x 33mm deep
- GM9535 - 1200N holding force from Ø95mm x 35mm deep
About the product
A range of five models in different sizes and holding forces.
100% ED (continuously rated).
IP65 protected with a zinc plated housing and a tapped hole for simple mounting.
Normally 12 or 24Vdc operation, but other voltages are available, including AC operation.
- GM3522 - 150N holding force from Ø35mm x 22mm deep
- GM4530 - 290N holding force from Ø45mm x 30mm deep
- GM5530 - 660N holding force from Ø55mm x 30mm deep
- GM6533 - 800N holding force from Ø65mm x 33mm deep
- GM9535 - 1200N holding force from Ø95mm x 35mm deep
