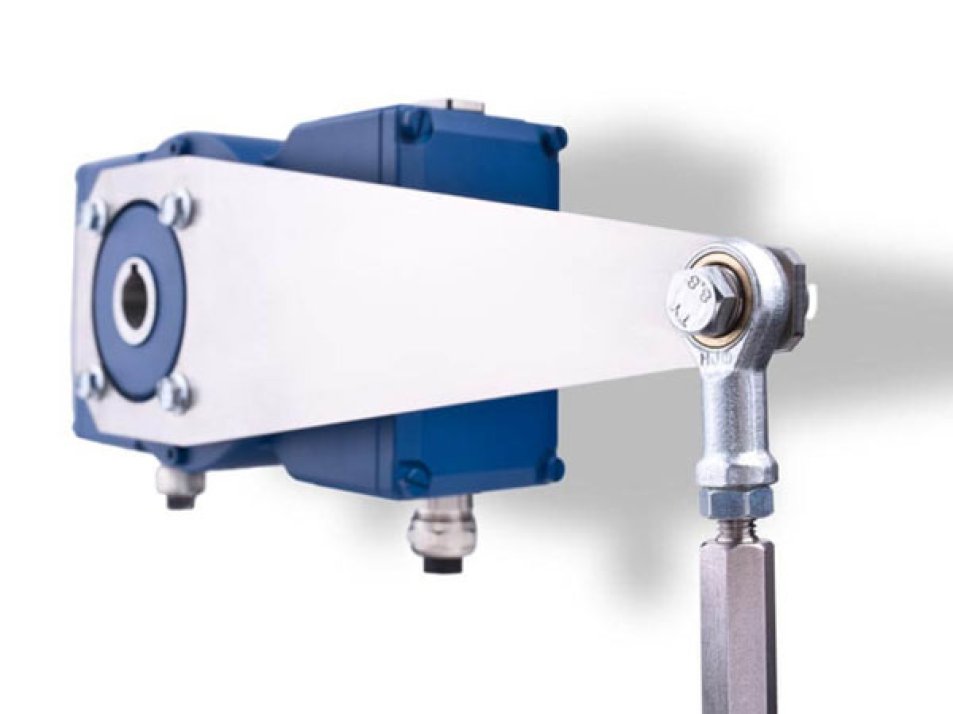

Torque brackets for hollow shaft encoders

About the product

Stable fixation of hollow shaft rotary encoders Optimal output signals when compensating for inaccuracies Maintenance-free and corrosion-resistant design, individual custom-made design Options: insulated version, certified safety component according to DIN EN ISO 13849-2 (PL e)

• Application range Compensation of minor mounting errors in hollow shaft encoders (radial eccentricity of the drive shaft / radial eccentricity due to fitting tolerances / axial movement of the drive shaft)
• Mounting type: Calculated individually from case to case / design according to consultation: Variable lengths of torque bracket (B), bracket lengths (L) Special mounting positions possible (e.g. foot facing sideways or upwards depending on local situations) Different angles between bracket arm and weight arm possible by agreement (e.g. 45° instead of 90°) Adapted base plates or flange plates Insulated version
• Maximum speed / frequency Calculated individually from case to case / design according to consultation
• Shock resistance Calculated individually from case to case / design according to consultation Vibration resistance Calculated individually from case to case / design according to consultation
• Temperature range Calculated individually from case to case / design according to consultation
• Insulation against bearing/shaft currents Yes (optional)
