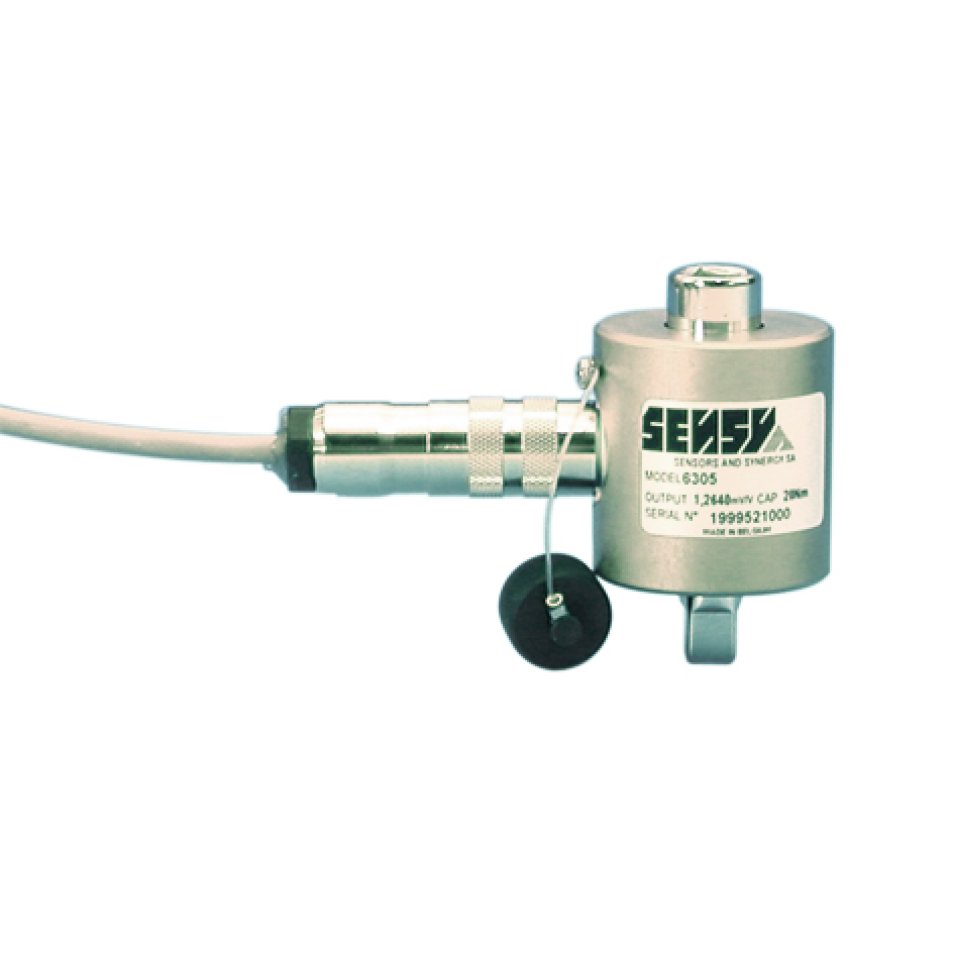

6305 NON ROTATING TORQUE METER FOR RATCHET WRENCH
About the product
Non-rotating torque meter meant to be put between the ratchet and the wrench.
Key features
- Broad range of capacities: from 50 Nm to 250 kNm
- Easy to install (standardized wrenches)
- Compact design
- Protection IP 65
- Material: nickel plated steel
- Available options (non-exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o high service temperature (up to 180 °C)
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
o double strain-gage bridge
The SENSY's load cells 6305 are perfectly designed for the following applications
- Tightening torque control on ratchet wrench - Tightening torque control on machines
CAPACITIES
6305 : 50 - 100 - 300 - 800 Nm
up to 250 kNm
Certificates and standards
-
EX
-
CE
Manufacturer
About the product
Non-rotating torque meter meant to be put between the ratchet and the wrench.
Key features
- Broad range of capacities: from 50 Nm to 250 kNm
- Easy to install (standardized wrenches)
- Compact design
- Protection IP 65
- Material: nickel plated steel
- Available options (non-exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o high service temperature (up to 180 °C)
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
o double strain-gage bridge
The SENSY's load cells 6305 are perfectly designed for the following applications
- Tightening torque control on ratchet wrench - Tightening torque control on machines
CAPACITIES
6305 : 50 - 100 - 300 - 800 Nm
up to 250 kNm
