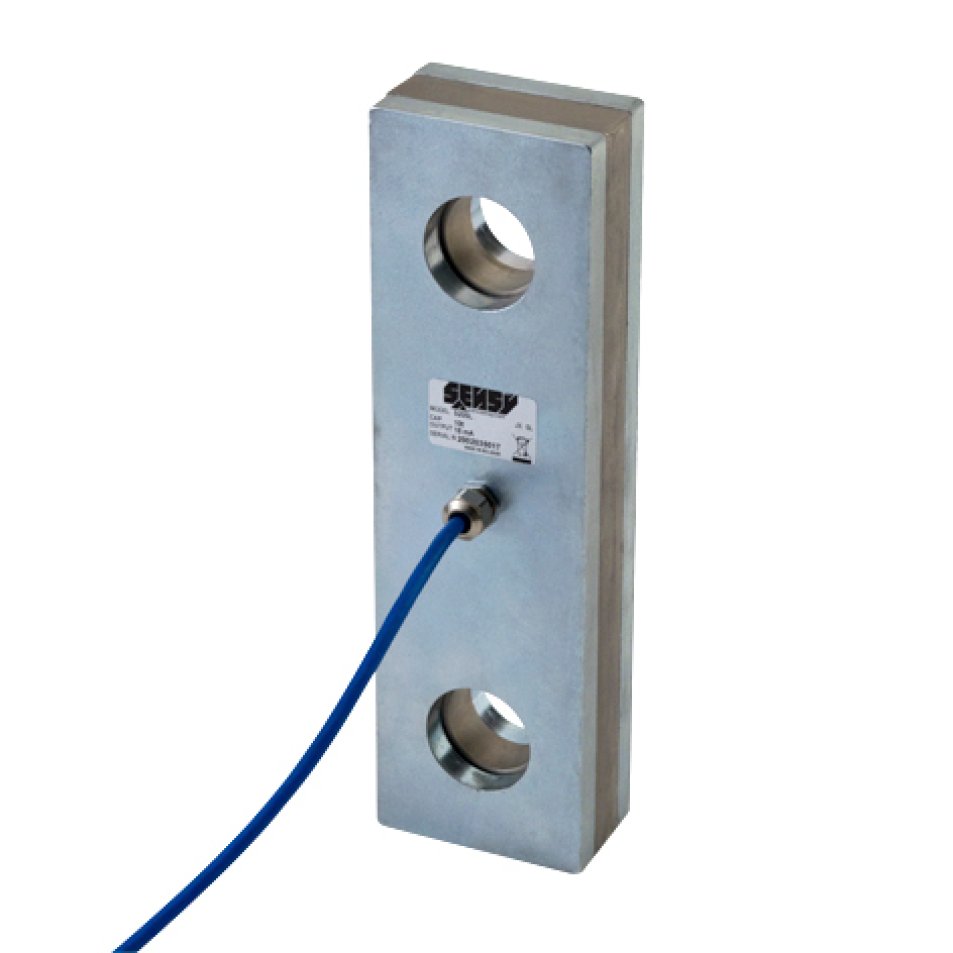

5205L TENSION LOAD CELL

About the product

Stretch link specially designed for load restraint on hoisting and lifting devices.

Key features

- Sturdy design
- Breaking load > 500%
- CE certified for hoisting devices
- Material: Nickel plated steel (Also available in stainless steel: Model 5200L)
- Protection IP 66
- Easy to install (standard shackles)
- Complete range of "CE" certified electronics and load limiters
- Available options (non-exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified output (V or mA)

The SENSY's load cells 5205L are perfectly designed for the following applications

SL - HOIST : Hoisting devices and crane's security in combination with a load limitation electronic: (BRIDGEBOY, CRANEBOY, …)
SL - LIFT : Load limitation for

CAPACITIES
5205L : (0.5) - 0.75 - 1.5 - 3 - 5 - 10 - (15) - 25 h
