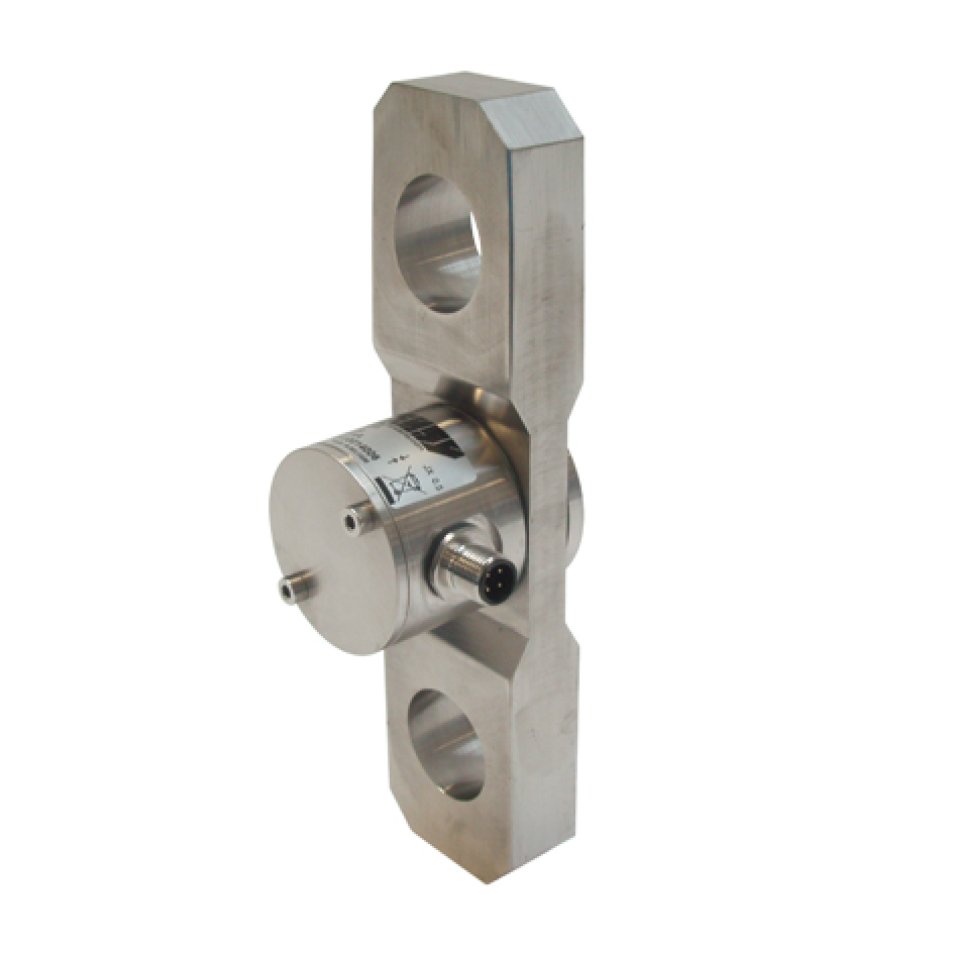

5200 TENSION LOAD CELL
About the product
Link load cell specially designed for adaptation to standard shackles. Option SIL/Pl, wireless, Ip67(marine)
Key features
- Sturdy design
- Material: Nickel plated steel (also available in stainless steel)
- Protection IP 66
- Most important available options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o Amplified output signal (0..10 V, 4..20 mA)
o Digital output signal (RS-232C, RS-485, USB, ...
The SENSY's load cells 5205 are perfectly designed for the following applications
- Tension force measurement - Suspended industrial weighing
CAPACITIES
5205 : 20 - 50 - 100 - 200 - 300 - 500 - 1000 - 2000 kN
Typical applications
-
Crane & lifting
Certificates and standards
-
EX
-
CE
Manufacturer
About the product
Link load cell specially designed for adaptation to standard shackles. Option SIL/Pl, wireless, Ip67(marine)
Key features
- Sturdy design
- Material: Nickel plated steel (also available in stainless steel)
- Protection IP 66
- Most important available options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o Amplified output signal (0..10 V, 4..20 mA)
o Digital output signal (RS-232C, RS-485, USB, ...
The SENSY's load cells 5205 are perfectly designed for the following applications
- Tension force measurement - Suspended industrial weighing
CAPACITIES
5205 : 20 - 50 - 100 - 200 - 300 - 500 - 1000 - 2000 kN
