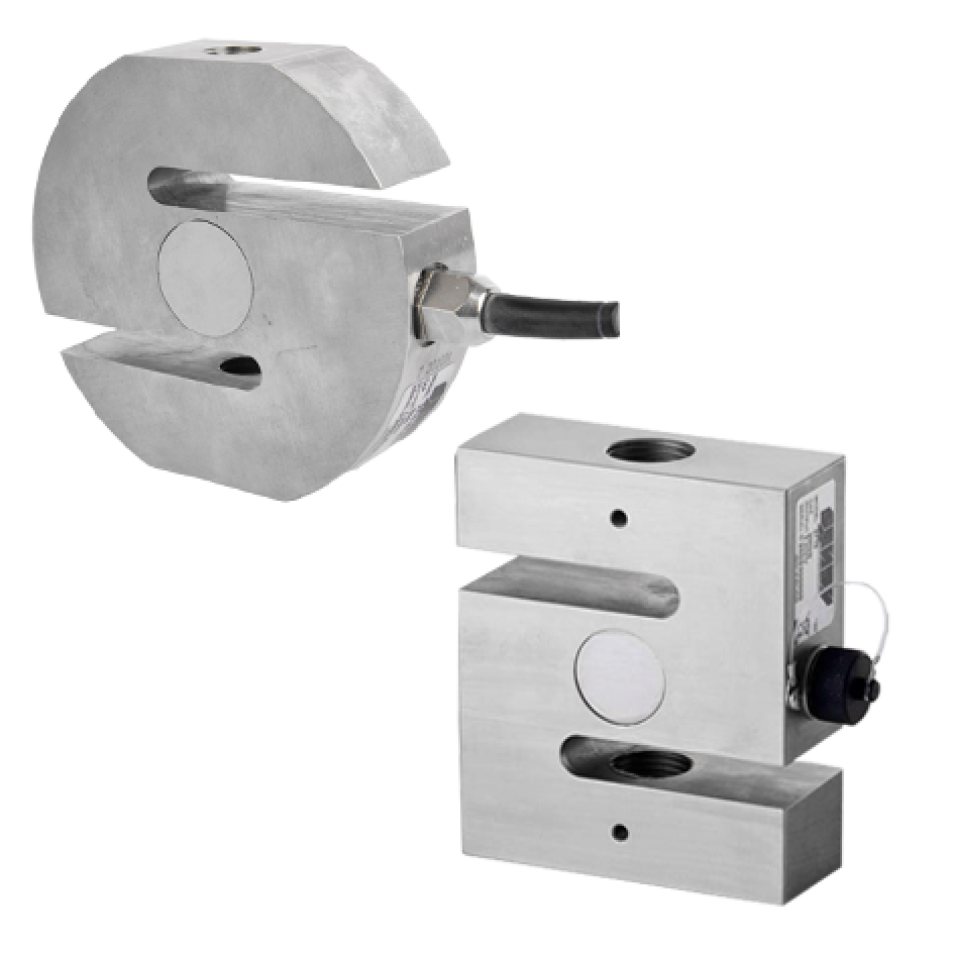

2710-2715 Tension and compression load cell
About the product
Universal load cell that combines accuracy, stability and easy installation.
Key features
- Stainless steel
- Protection IP 67
- Compact design
- Available options (non-exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o cable output by connector
o high service temperature (180 °C)
The SENSY's load cells 2710 are perfectly designed for the following applications
- Industrial force measurement - Weighing of suspended reactors or hoppers - Weighing of conveyor belts - Hybrid weighbridges (mechanical conversion.
CAPACITIES
2710 : (5) - (7.5) - 10 - (15) - 20 - (30) - 50 kN
Typical applications
-
Process
-
Construction
Certificates and standards
-
EX
-
CE
Manufacturer
About the product
Universal load cell that combines accuracy, stability and easy installation.
Key features
- Stainless steel
- Protection IP 67
- Compact design
- Available options (non-exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o cable output by connector
o high service temperature (180 °C)
The SENSY's load cells 2710 are perfectly designed for the following applications
- Industrial force measurement - Weighing of suspended reactors or hoppers - Weighing of conveyor belts - Hybrid weighbridges (mechanical conversion.
CAPACITIES
2710 : (5) - (7.5) - 10 - (15) - 20 - (30) - 50 kN
