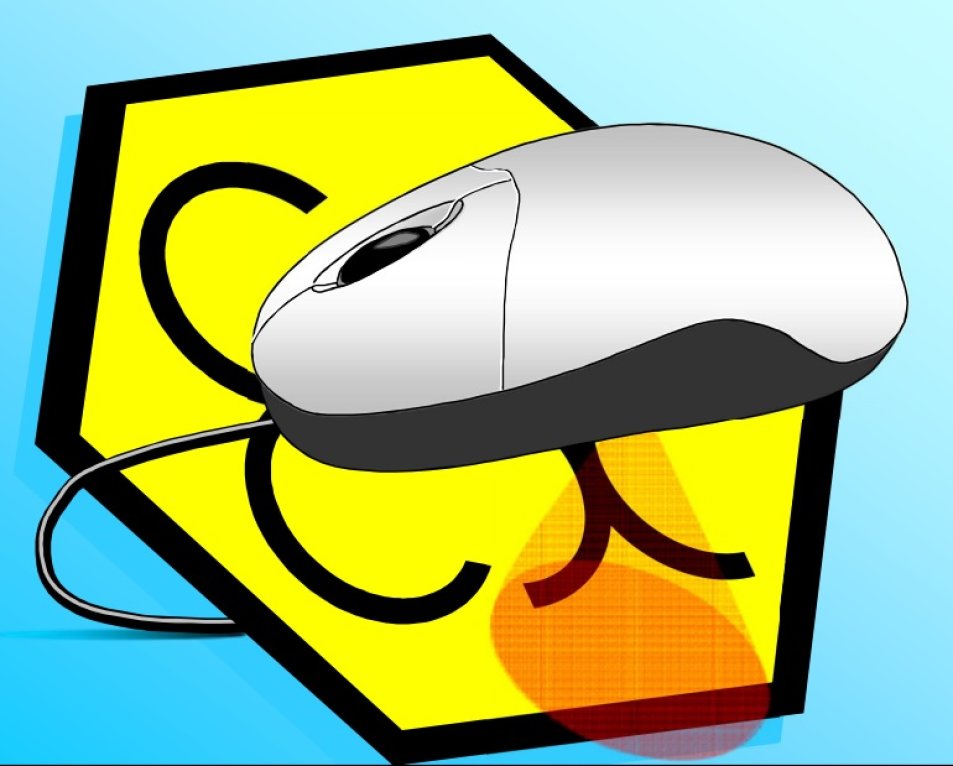

EX mouse KM26IP1/KM25-PS2

About the product

Optical mouse, wired suitable for use in EX zones 1 and 2 ·No mechanics exposed to wear or contamination

EX mouse for use with EX barrier (TW-100D)

Electrical and mechanical data
Dimension KM-25: 117 x 62 x 39 mm
Sealing degree: IP 20
Weight KM-25: 90 g without cable
Cable length 1.5 m

Data for Ex Areas

Model: KM-26 IP
Type: KM-25
- II 2 G Ex ia IIC T4 Gb
- -20°C ≤ Ta ≤ +50°C
- IBExU 05 ATEX 1009

Electrical circuit:
Only for connection to ATEX certified intrinsically safe circuits with:
UI ≤ 5.4 V
Ii ≤ 250 mA
Pi ≤ 1.2 W
Effective internal capacitance Ci: = 18 µF
Effective internal inductance Li: negligible
