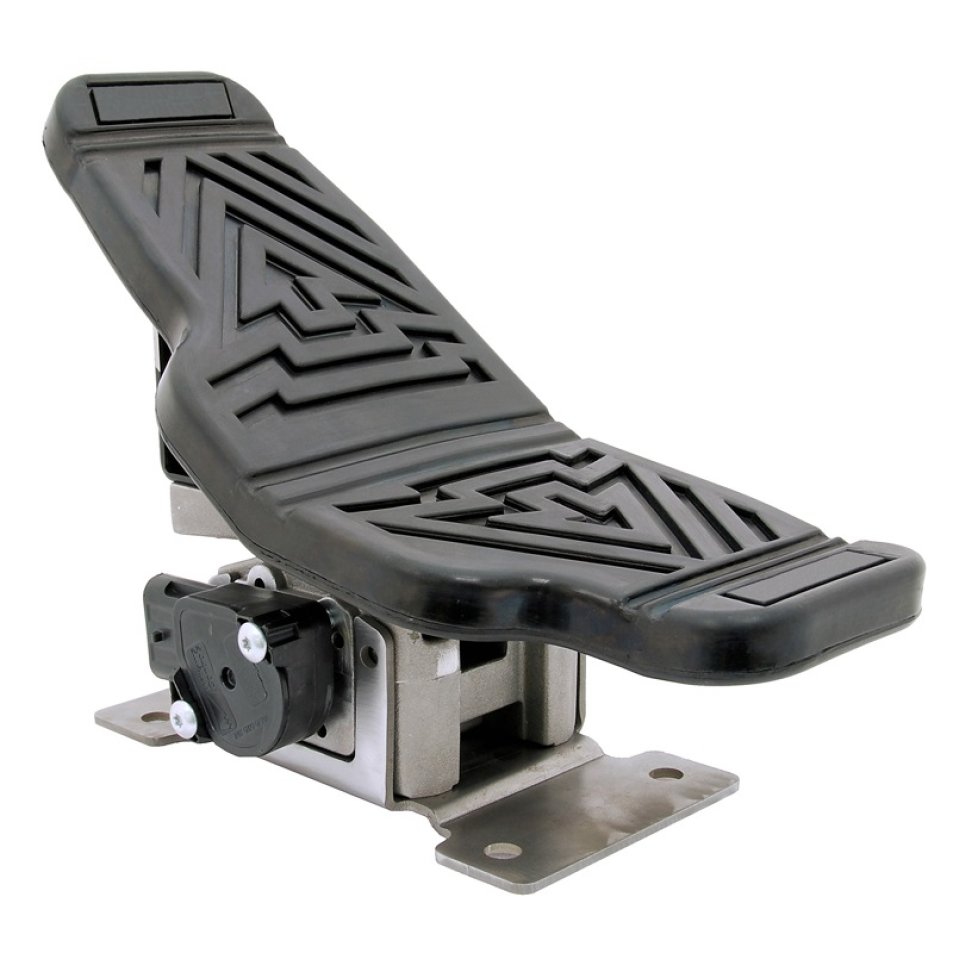

WM-575 - Hall effect rocker pedal

About the product

Built for the harshest environments The WM-575 Hall-effect rocker pedal is built for the harshest off-highway environment. Its rugged design is extremely durable and demonstrates outstanding performance for use in open cabs.

The design of the WM-575 allows programming of the sensor on the rocker pedal to achieve a highly accurate output. The sensor provides a ratiometric signal that is interpreted by the vehicle controller. The electronics are IP67 sealed and highly EMC resistant (SAE J1113). The Hall Effect Pedal is floor mounted and designed for fore and aft movement. It has a rubber cover for foot grip and is made of a corrosion resistant coated metal. The product can be adapted for side-to-side movement.

• 14° ± 2° angular rotation, fore and aft
• FMVSS 124 and 302 compliant
• -40°C to +85°C Operation
• +5V Operation
• Electronics IP67 Sealed
• Dual Ratiometric APS Output
• Independent, isolated APS circuits
• Protected against electrical misconnection
• Metripak 150 Series Compatible Connector
• Touchless sensor
• Highly EMI resistant
• Base and tread in black coated steel
• Chromate Conversion Module Components
