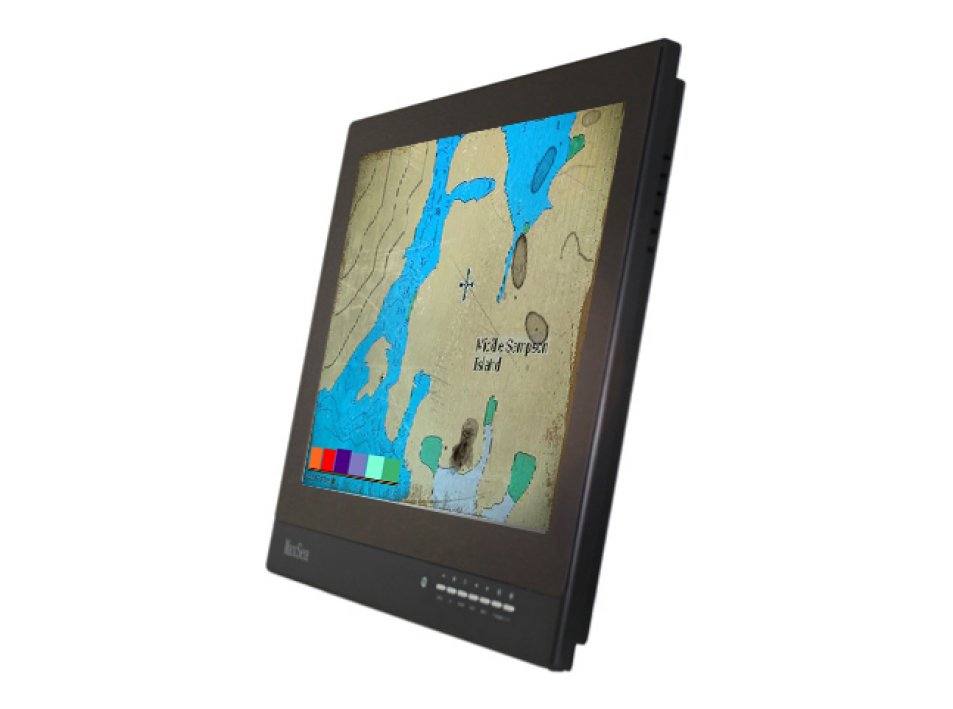

YAMO-150 15" Display, Panel mount, IP65
About the product
15" TFT color display • Max. resolution 1024x768 pixels • Aspect ratio 4:3 • DVI-D, RGB inputs • Power supply 9-36VDC • Panel mount • IP65 protected (front)
FEATURES
• 15" TFT 450 nits high brightness XGA LCD
• IP65 protected (Front)
• Wide viewing angle (160/160)
• High contrast ratio (700 : 1)
• The brightness is adjustable from 1 to 100%
• DVI-D Input, RGB Input, Video (optional BNC), RS232 to control Brightness/Alarm
PRODUCT SPECIFICATIONS
TFT Technology
• 15 inch viewable image size
• LPTS Thin Film Transistor (TFT) active matrix
TFT Characteristics
• Pixel Number: 1024 x 768 (XGA)
• Pixel Pitch: 0.297(H) x 0.297(V) mm
• Aspect Ratio: 4:3
• Response Time: 17ms (typical), "raising" to "falling"
• Contrast Ratio: 700:1 (typical)
• Light Intensity: 450cd/m 2 (typical)
• Viewable Angle: 80°(UP/Down) / 80°(Right/Left) (Typ)
• Active Display Area: 304.128(H) x 228.096(V) mm
• Max Colors: 16.2M colors
Synchronization
• Auto detects VGA>XGA
• Support for Sync-on-Green (SOG)
• RGB input current: 0-0.7V with 75Ohm
• Supports up to 165MHz
Supported Signal Inputs
Resolutions:
• VGA 640 x 480
• SVGA 800 x 600
• XGA 1024 x 768 *
* Recommended for optimum picture quality
Power Specifications
• Power Supply Options: wide range input: from 9VDC to 36 VDC
• Power Consumption: Operating 35W (max)
MECHANICAL DESCRIPTION
Physical Dimensions
• 369 (W) x 331 (H) x 46 (D) mm
• Weight: 4.8 kg
Input Signal Terminal
• RGB (PC) signal: 15pin mini D-SUB (female input)
• DVI (PC) signal: DVI-D Input 24pin Connector
• Serial Ports signal: RS232 Connector For Brightness/buzzer Control
• DC Power signal: DC Power Terminal
User Controls (front)
• On Screen Display control (OSD)
• Brightness Control
Environmental Considerations
• Operating: Temperature 0°C to +60°C, Humidity 8% to 95%
• Storage: Temperature -20°C to +60°C, Humidity 8% to 95%
Safety Considerations
Even though the test conditions for bridge units provide for a maximum operating temperature of 60°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.
