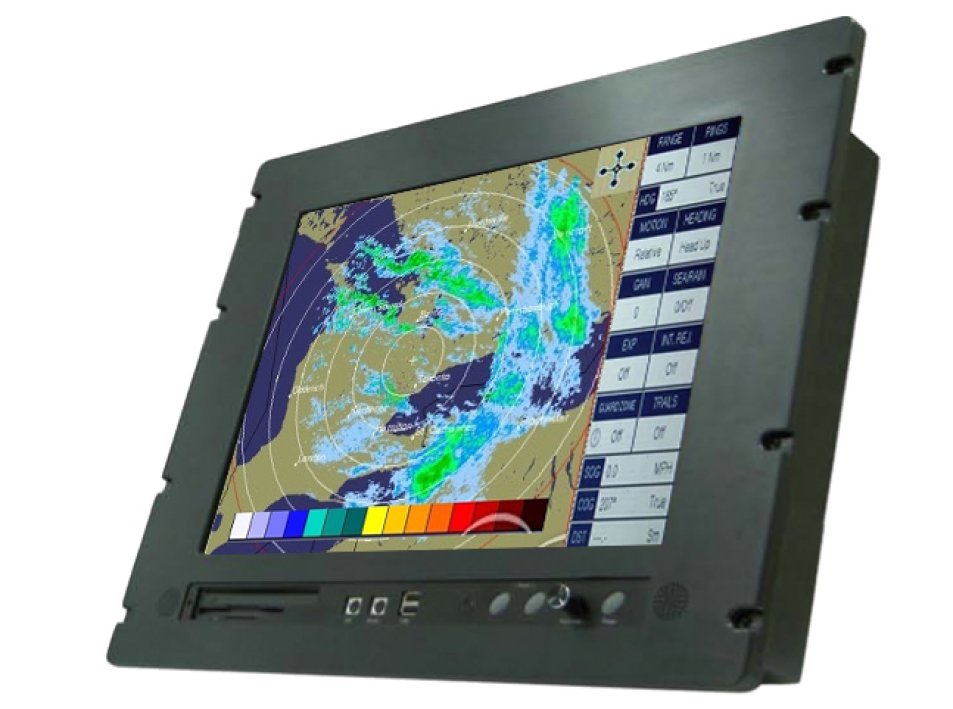

MK7 23.1" Panel PC, Intel Pentium 4, IEC60945 approved

  • MK7
MK7
MK7

About the product

23.1" TFT color display • Max. resolution 1600x1200 pixels • Intel Pentium 4 2.4GHz • 512Mb RAM • 40Gb HDD • Power supply 90/264VAC - 49/64Hz • Panel mount • Approved for maritime applications (IEC60945)


PRODUCT SPECIFICATIONS

TFT Technology
 • 23.1 inch viewable image size
• Thin Film Transistor (TFT) active matrix

TFT Characteristics
 • Pixel Number: 1600 x 1200 (UXGA)
• Pixel Pitch: 0.294 (H) x 0.294 (V) mm
• Response Time: 15ms (typical), "back" to "white"
• Contrast Ratio: 500:1 (typical)
• Viewable Angle: +/- 80deg. (my)
• Active Display Area: 470.4 (H) x 325.8 (V) mm
• Brightness: 250 cd/m2
• Max Colors: 16.7 million (8-bit color)
• Power Supply: 300W ATX, 90-264 VAC Auto ranging (49-64 Hz)
• Power Consumption: 180W

Computer Specifications
 • Processor: Intel Pentium 4 2.4GHz (max 3.06GHz+)
• System Chipset: Intel 845G/PE Chipset
• BIOS: Award BIOS, ACPI supported
• Memory Slot: 512 MB DDR SDRAM (up to 2GB)
• Optional VGA: ATI Mobility M7 graphics controller
• IDE Controller: 2 x IDE Ports, UDMA33/66/100
• IDE HDD internal: Samsung 40GB, 2.5" IDE, 5400 RPM
• CD-ROM drive: 1 x 24x CD-ROM
• FDD drive: 1 x 1.44MB, 3.5" FDD
• Audio (alarms): AC-97 2.2 compliant
• PCI Slot: 3 x PCI2.2 Slots 32-Bit, Full Length
• Parallel Port: 1 x SPP/EPP/ECP Port
• Serial Port: 1 x RS-232/422/485 Port
• Ethernet: 1 x 10/100Mbps & One Gigabit LAN port
• USB Ports: 4 x USB Ports (2 in back, 2 in front)
• Keyboard Port: Standard PS/2 mini DIN Connector
• Mouse Port: Standard PS/2 mini DIN Connector


MISCELLANEOUS

Physical Dimensions
 • 635 (W) x 550 (H) x 160 (D) mm
• Weight: 28.4 kg

Options
• Pedestals for table top, deck and bulk head installations.
• One serial board 4 x opto isolated serial ports
• Keyboard/roller ball
• Several options with dimmable backlight available

Approvals
CE, Wheel mark (EU) and IEC 60945. Fully compliant with the IMO Resolution A.817(19):1995, IMO Resolution MSC.64(67), Annex5:1996, IHO S-57 and S-52 Standards, IEC 61174:1998 and IMO A.817(19) Appendix A.7:1998.
