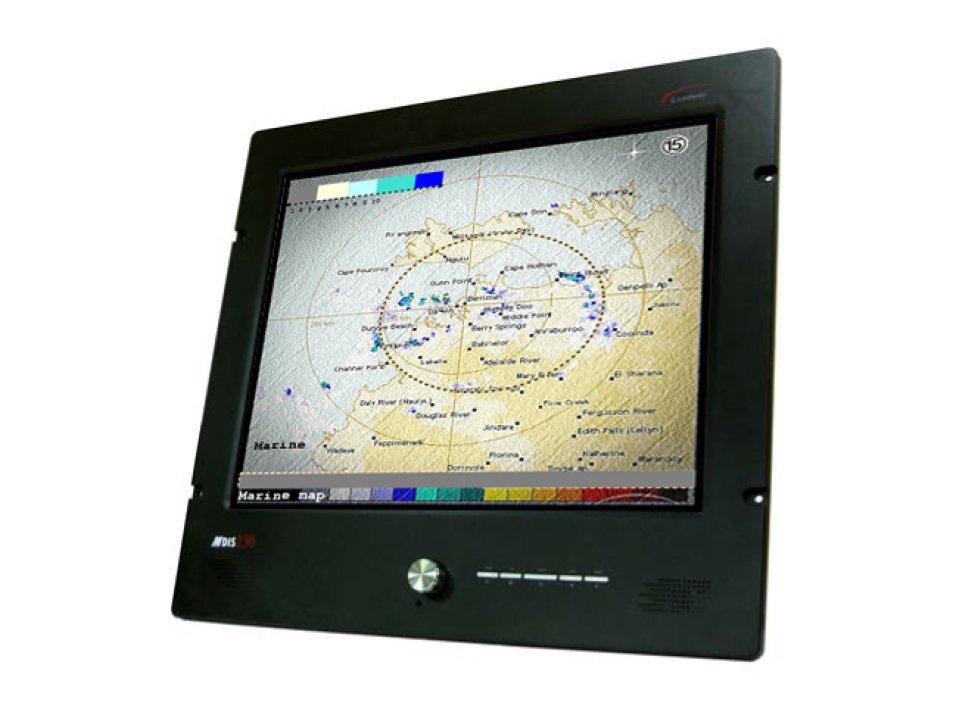

MDIS-190 19" Display, Rack mount, IEC60945 approved

About the product

19" TFT color display • Max. resolution 1280x1024 pixels • Aspect ration 4:3 • DVI-D, RGB, RS-232 inputs • Power supply 90/264VAC - 47/63Hz • Rack mount • Approved for maritime applications (IEC60945)

FEATURES

The color display is an industrialized version of a high quality SHARP TFT based display with Premium VAT mode. The product allows you to display professional applications with clarity and enhanced color and image quality.

The Monitor has DVI-D Input, RGB Input, RS232 Input.

The controller and the high light intensity in combination with the high contrast and wide backlight adjustment control, allow the product to be used in many environments.

The brightness is adjustable from 0 to 100%.

PRODUCT SPECIFICATIONS

TFT Technology
• 19 inch viewable image size
• LPTS Thin Film Transistor (TFT) active matrix
• MVA mode (MVA: Multi-domain Vertical Alignment)

TFT Characteristics
• Pixel Number: 1280 x 1024 (SXGA)
• Pixel Pitch: 0.294(H) x 0.294(V)mm
• Aspect Ratio: 4:3
• Response Time; 12ms(typical), "raising" to "falling"
• Contrast Ratio: 900:1 (typical)
• Light Intensity: 300cd/m ² (typical)
• Viewable Angle: +/-85deg. (my)
• Active Display Area: 376.32(H) x 301.056(V)mm
• Max Colors: 16.7 million (8-bit color)

Synchronization
• Auto detects VGA>SXGA
• Support for Sync-on-Green (SOG)
• RGB input current: 0-0.7 V with 75 Ohm
• Supports up to 165MHz

Supported Signal Inputs
Resolutions:
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024 *
* Recommended for optimum picture quality

Power Specifications
• Power Supply Options: 90 / 264 VAC – 47/63Hz
• Power Consumption Operating: 35W (max)

MECHANICAL DESCRIPTION

Physical Dimensions
• 483 (W) x 444 (H) x 72.5 (D)
• Weight: 11.65kg

Input Signal Terminal
• RGB (PC) signal: 15 pin mini D-SUB Connector
• DVI-D (PC) signal: DVI-D Input 24pin Connector
• Serial Ports signal: RS232 Connector
• AC Power signal: Std IEC Inlet

User Controls
• Power On/Off button
• Brightness Control
• On Screen Display control (OSD)

Environmental Considerations
• Operating Temperature 0°C to +60°C, Humidity 8% to 95%
• Storage Temperature -20°C to +60°C, Humidity 8% to 95%

Safety Considerations
Even though the test conditions for bridge units provide for a maximum operating temperature of 60°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.

Typical applications

Ship's bridge & control room
