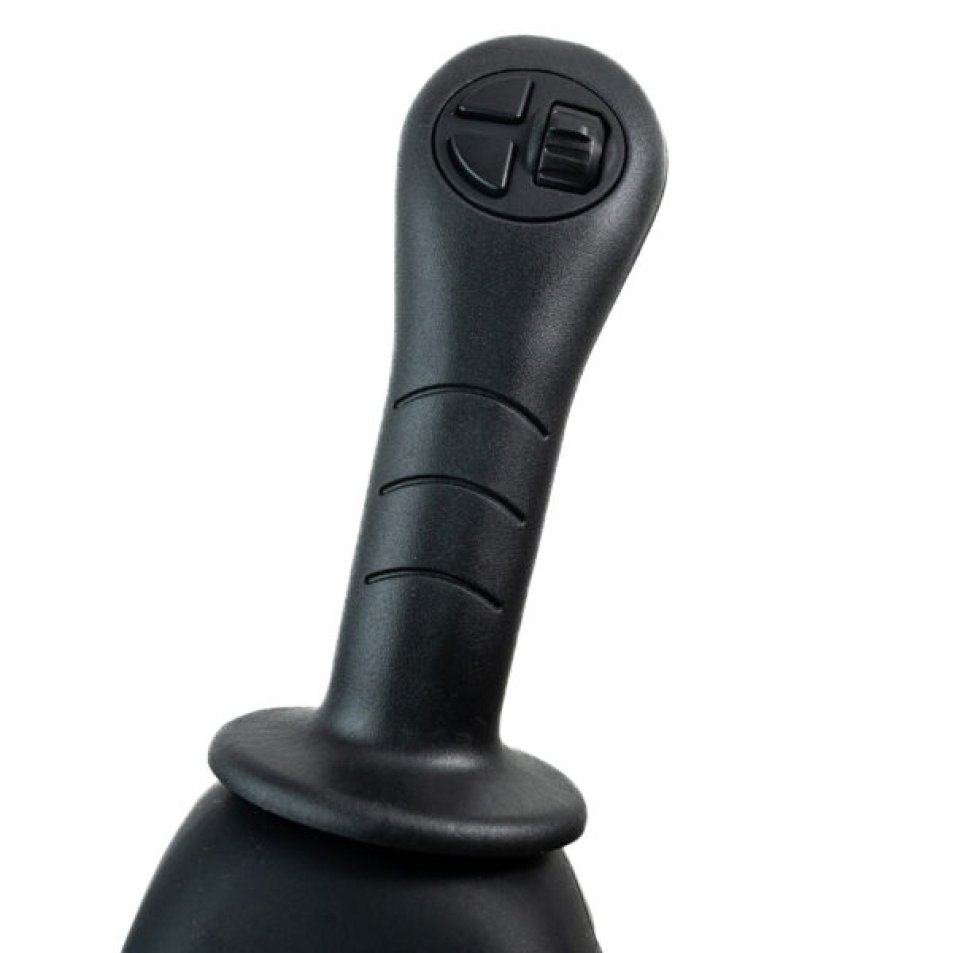

JC9000

About the product

New product, datasheet in progress

HYDRAULIC FEELING

• Built on over 40 years of engineering
• Seamless integration, promoting operator familiarity

OVER 100 CONFIGURATIONS!

• Universal configurations provide economies of scale for OEMs
• Variable movement angles and spring forces for optimal flexibility

BUILT TO LAST

• Market-leading mechanical performance
• IP69K, double sleeve for harsh environments

FUNCTIONAL SAFETY

• Developed with functional safety compliance from concept
• Complies with 2027 EN ISO 13849 to PLd

• Designed with a lifespan of 5 million full cycles to minimize cost of ownership
• The high location of the axle pivot point has enabled the high-strength construction with minimal depth under the panel.
• Each half-axis has a separate operating angle and spring force function, allowing the joystick to be configured for optimal use within an operating system.
• Hall effect sensing eliminates contact wear and provides safety functionality via dual outputs that are analyzed and safety controlled through the built-in CAN electronics.
• Electronic robustness is ensured with sealing of the internal circuit board to an IP67 rating, including the connector.
• A new multi-function handle has been developed to provide flexibility in machine functions with a robust, soft outer coating for maximum operator comfort during extended hours of use.
• The grip can be replaced if it is damaged or a system upgrade is needed – the grip is connected to the base joystick via a second connector.
