JC1200 - One-axis hall-effect fingertip joystick

About the product

Fingertip control and contactless Hall-effect sensing. 9 standard color codes. Robust design with very long life.

JC1200 - Hall Effect Paddle Joystick

The JC1200 is a stylish, non-contacting paddle joystick offering precise fingertip control.

• Robust design for hazardous applications
• Return-to-center or return-to-end options
• Under-panel depth minimized to 9mm
• Rated for 10 million cycles
• Hall effect sensor technology
• Dual outputs with sense and voltage span options
• IP67 sealing above panel
• Color-coded 'Tab' options
• Can be supplied as 'base-only' so the colored tabs can be fitted at final installation

This new joystick utilizes non-contacting, Hall-effect sensing technology for long-life integrity of the output signal. Operating feel has been an important part of this new development to make this unit as smooth and easy to operate as possible throughout the 10 million cycle life.

Hall-effect sensing eliminates contact wear and provides safety functionality via dual outputs, which can be set to positive or negative ramps, or a combination of both. Electronic robustness is assured with sealing of the internal PCB to a rating of IP65, while a joystick to panel rating of IP67 can be achieved.

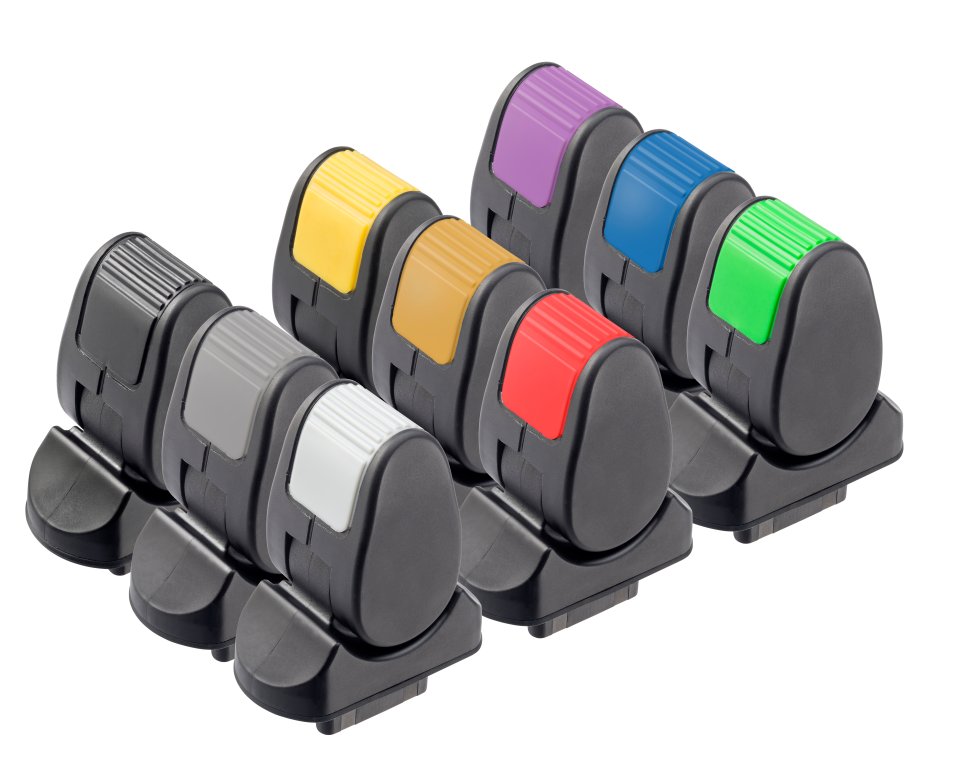

A choice of paddle 'Tabs' is available in nine different colours. These can be fitted at the factory or supplied as loose parts to be selected as part of the final installation process.
