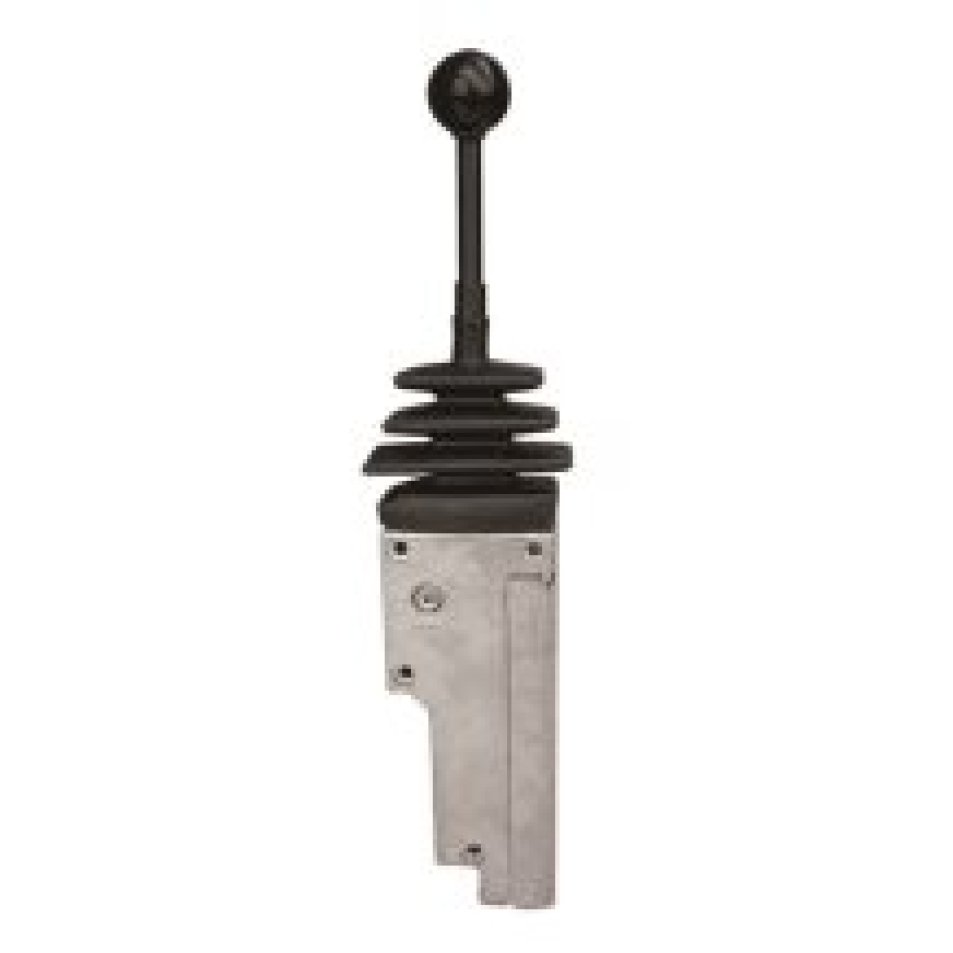

C80 - Single-acting stick controller
About the product
The Arens C80 series features a powerful lever control for hydraulic spool valves, winch valves or transmission valves.
±0.81 in (±20 mm) output stroke
Maximum working load:
1/4-28 End Rod Cable - 100 lbs (445N)
5/16-24 End Rod Cable - 200 lbs (890N)
Too loaded center return spring
Symmetrical leverage; ±30° maximum leverage on mounting centerline
Closed assemblies with zinc die-cast body
Uses standard configuration for push-pull cables - clamp type, 2" output stroke, either 1/4-28 or 5/16-24 end rod
Typical applications
-
Hydraulics & Mechatronics
-
Off Highway Automotive
Manufacturer
About the product
The Arens C80 series features a powerful lever control for hydraulic spool valves, winch valves or transmission valves.
±0.81 in (±20 mm) output stroke
Maximum working load:
1/4-28 End Rod Cable - 100 lbs (445N)
5/16-24 End Rod Cable - 200 lbs (890N)
Too loaded center return spring
Symmetrical leverage; ±30° maximum leverage on mounting centerline
Closed assemblies with zinc die-cast body
Uses standard configuration for push-pull cables - clamp type, 2" output stroke, either 1/4-28 or 5/16-24 end rod
