Sensor with inductive or magnetic scanning

About the product

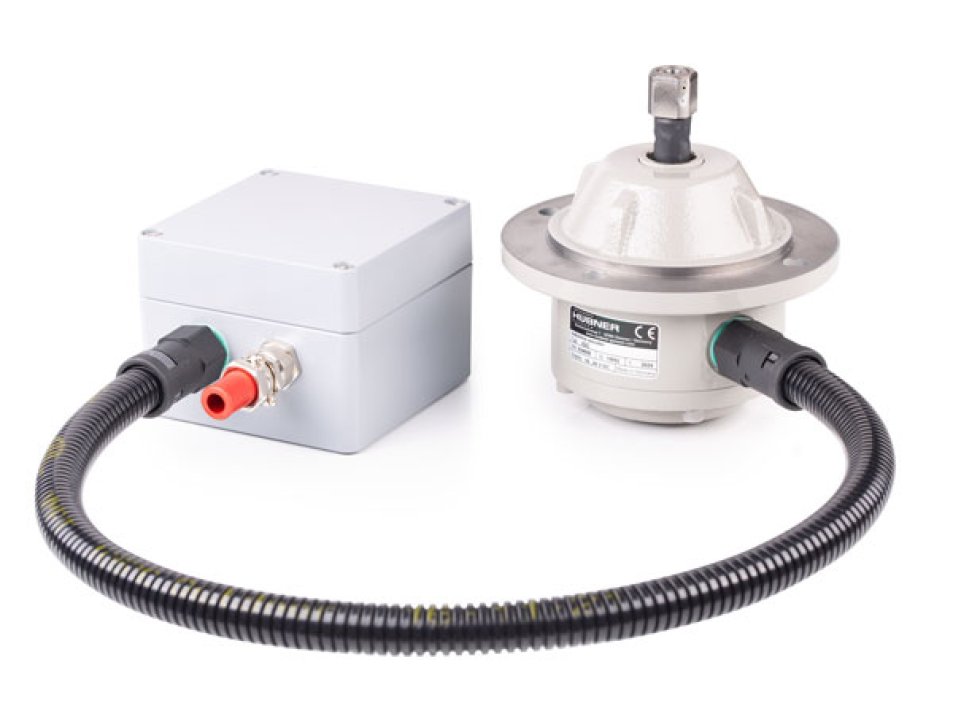

These encoders are electromagnetic transducers whose inductive or magnetic scanning is used to generate precise, digital HTL output signals. They are used for speed measurement and are used in particular for traction and slip control, e.g. motor vehicle sets. The robust design and the high degree of protection (up to IP 66) allow them to be used even under the harshest conditions. Johannes Hübner Giessen encoders with inductive or magnetic recording are developed and designed to meet individual customer requirements. The evaluation electronics can be integrated in the same housing as the sensor or in a separate housing, depending on the customer's requirements and desired design. Robust protective pipe systems are available for all data and supply cables.

Key information

Supply voltage: 12-30 V DC (IGM C) / 14-26 V DC (IG C)

Signal amplitude: HTL

Number of pulses: 1024 / 4096

Output signals: 0°, 90°, N, Status, each also inverted

Maximum speed/frequency: 200 kHz

Electrical connection: Terminal strip, permanently connected cable

Device temperature range: -40 … +85 °C (IGM C) / -25 … +85 °C (IG C)

Protection degree: up to IP66
