MA4101 Incremental encoder

About the product

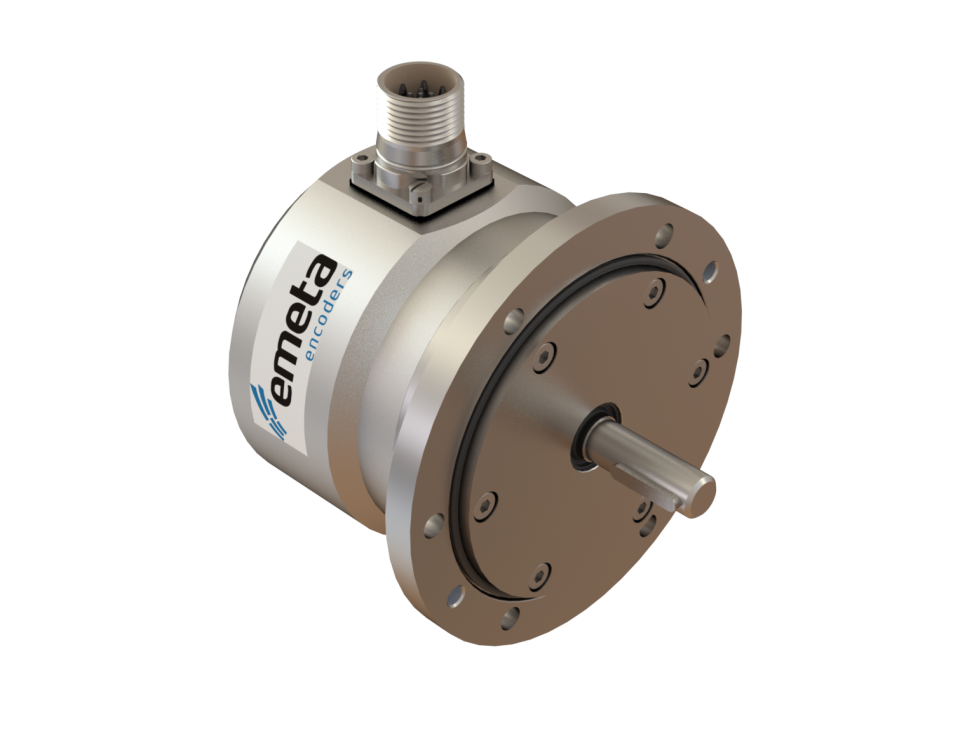

This encoder is designed for harsh environments. B10 Euro flange with an outer diameter of 115 mm and a 11 mm shaft with keyway. With features such as double shaft seals, pressure equalizing diaphragms, reinforced robust bearings and mechanically secured shaft and bearing packages, this sensor is built to last!

The double shaft seal means that dust, moisture and liquid cannot penetrate the sensor via the shaft. Breathable membranes prevent condensation due to large temperature changes. In this sensor series, this feature is offered on both the sensor housing and the terminal box. This ensures that the sensor can be considered suitable for offshore, mining, crane and other applications with high demands. The sensor is available in anodized aluminum and stainless steel AISI 316 steel IP67.

OUTER DIAMETER ⌀115mm
SHAFT DIMENSION ø11mm shaft diameter with keyway
AXLE TYPE Solid axle
SURFACE TREATMENT Anodized aluminum, stainless steel
FLANGE TYPEB10 Euro flange
NUMBER OF CHANNELS 6 channels (A, B&O pulse differential) ELECTRICAL CONNECTION DIRECTION Radial E
ELECTRICAL CONNECTION Radial M23, cable, junction box
ELECTRICAL INTERFACE TTL, HTL
SUPPLY VOLTAGE 5 Vdc, 5-30 Vdc
SHOCK 200g at 11ms
TEMPERATURE -40° - 80°C
VIBRATION 20g at 20-2000 Hz
SHAFT SEAL Double shaft seal with protective lip
MEMBRANE FILTER Double membrane filters on the junction box
Ventilated housing with membrane filter cable and M23 version
